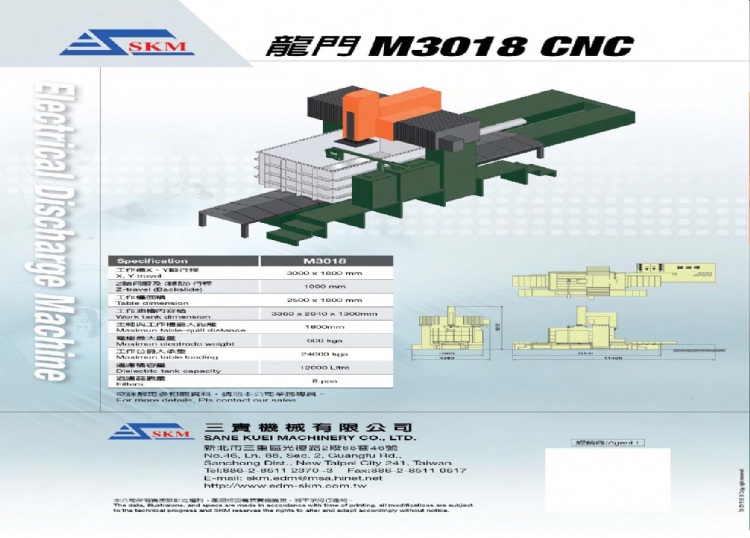

Bridge-type heavy duty CNC EDM M3018
Model: M3018
Category: Machine Tools / Electric Discharge Machines / CNC Electric Discharge Machines
Characteristics
Specification M 3018
X, Y-Travel 3000 x1800 mm
Z-Travel 1000 mm
Table Dimension 2500 x 1800 mm
Work Tank Dimension 3360 x 2040 x 1300 mm
Max. Table-Quill Distance 1800 mm
Max. Electrode Weight 600 kgs
Max. Table Loading 24,000 kgs
Filters 8 PCS
