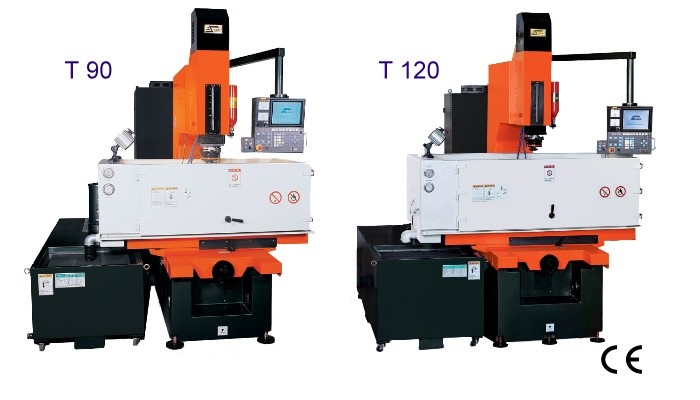

ZNC (Die-sinking) EDM Series T30,T50,T60,T90,T120,PT90
Model: T30,T50,T60,T90,T120,PT90
Category: Machine Tools / Electric Discharge Machines / Programmable Control (NC) Electric Discharge Machines
Characteristics
The Z axis utilizes AC servo motor.
N C programmable functions
The Circle Angle of Sparking is lower than 0.02mm
The best surface roughness (Ra) is better than 0.1 µm.
High speed and long distance jumping.
Special rib shape machining function.
Specifications
Specification
|
T30
|
T50
|
T60
|
X, Y-Travel |
200 x 150 mm
|
300 x 200 mm
|
400 x 300 mm
|
Z-Travel |
200 mm
|
300 mm
|
300 mm
|
Table Dimension |
360 x 220 mm
|
560 x 300 mm
|
660 x 380 mm
|
Work Tank Dimension |
520 x 330 x 240 mm
|
700 x 460 x 270 mm
|
1040 x 580 x 320 mm
|
Max. Table-Quill Distance |
440 mm
|
500mm
|
520 mm
|
Max. Electrode Weight |
20 kgs
|
30 kgs
|
40 kgs
|
Max. Table Loading |
350 kgs
|
800 kgs
|
1000 kgs
|
Dielectric Tank Capacity |
120 Litre
|
200 Litre
|
400 Litre
|
Filters |
2 PCS
|
2 PCS
|
2 PCS
|
Machine Weight |
760 kgs
|
1400 kgs
|
1650 kgs
|
Machine Height |
2100 mm
|
2240 mm
|
2260 mm
|
