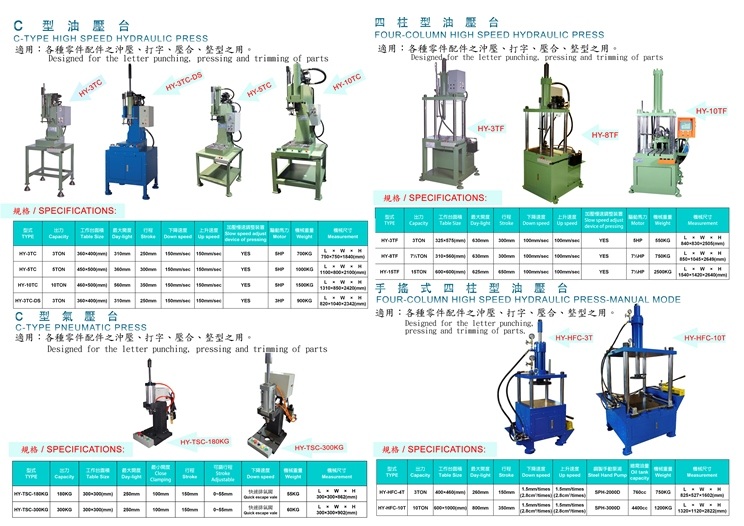

HYDRAULIC PRESS
Model: HY-3TC,HY-5TC,HY-10TC,HY-3TF,HY-5TF,HY-10TF,
Category: Machine Tools / Metal Forming Machine Tools / Hydraulic Machinery
Online Inquiry
Characteristics
Designed for the letter punching, pressing and trimming of parts
Specifications
FOUR-COLUMN HIGH SPEED HYDRAULIC PRESS
| TYPE |
HY-3TF |
HY-8TF |
HY-15TF |
| Capacity |
3TON |
7½ TON |
15TON |
| Table Size |
310×560(mm) |
310×560(mm) |
600×600(mm) |
| Day-light |
630mm |
630mm |
625mm |
| Stroke |
300mm |
300mm |
650mm |
| Down speed |
100mm/sec |
100mm/sec |
100mm/sec |
| Up speed |
100mm/sec |
100mm/sec |
100mm/sec |
| Slow speed adjust device of pressing |
YES |
YES |
YES |
| Motor |
5HP |
7½ HP |
7½ HP |
| Weight |
550KG |
750KG |
2500KG |
| Machine Dimension (L× W× H) |
840×835×2470(mm) |
840×950×2470(mm) |
1540×1420×2640(mm) |
|
C-TYPE HIGH SPEED HYDRAULIC PRESS
| TYPE |
HY-3TC |
HY-5TC |
HY-10TC |
| Capacity |
3TON |
5TON |
10TON |
| Table Size |
360×400(mm) |
450×500(mm) |
460×500(mm) |
| Day-light |
310mm |
360mm |
560mm |
| Stroke |
250mm |
300mm |
350mm |
| Down speed |
150mm/sec |
150mm/sec |
200mm/sec |
| Up speed |
150mm/sec |
150mm/sec |
150mm/sec |
| Slow speed adjust device of pressing |
YES |
YES |
YES |
| Motor |
5HP |
5 HP |
5 HP |
| Weight |
700KG |
1000KG |
1500KG |
| Machine Dimension (L× W× H) |
750×750×1840(mm) |
1100×800×2100(mm) |
1310×850×2420(mm) |
|
FOUR-COLUMN HIGH SPEED HYDRAULIC PRESS-MANUAL MODE
| TYPE |
HY-HFC-4T |
HY-HFC-10T |
| Capacity |
3TON |
10TON |
| Table Size |
400×460(mm) |
600×1000(mm) |
| Day-light |
260mm |
800mm |
| Stroke |
150mm |
350mm |
| Down speed |
1.5mm/times(2.8cm³/times) |
1.5mm/times(2.8cm³/times) |
| Up speed |
1.5mm/times(2.8cm³/times) |
1.5mm/times(2.8cm³/times) |
| Slow speed adjust device of pressing |
SPH-2000D |
SPH-3000D |
| Motor |
760cc |
4400cc |
| Weight |
750KG |
1200KG |
| Machine Dimension (L× W× H) |
825×5027×1602(mm) |
1320×1120×2822(mm) |
|
C-TYPE PNEUMATIC PRESS
| TYPE |
HY-TSC-180KG |
HY-TSC-300KG |
| Capacity |
180KG |
300KG |
| Table Size |
300×300(mm) |
300×300(mm) |
| Day-light |
250mm |
250mm |
| Stroke |
100mm |
100mm |
| Stroke |
150mm |
150mm |
| Stroke adjustable |
0-55mm |
0-55mm |
| Down speed |
快速排氣閥
Quick escape valve |
快速排氣閥
Quick escape valve |
| Weight |
55KG |
60KG |
| Measurement |
L × W × H
300×300×862(mm) |
L × W × H
300×300×902(mm) |
|
