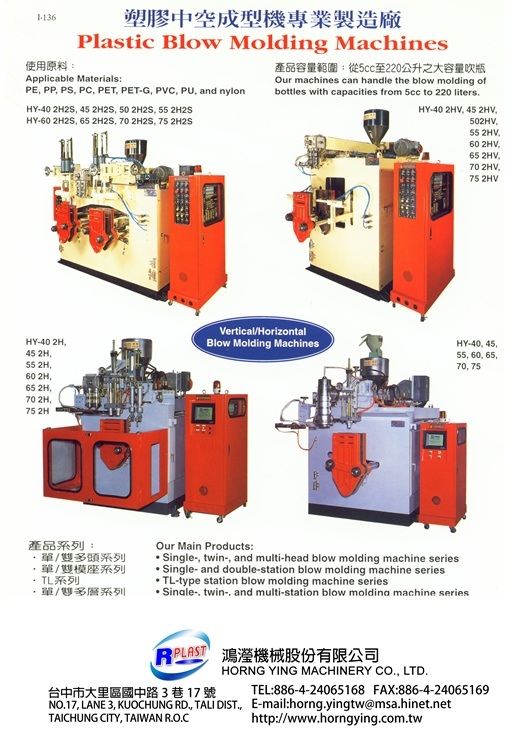

Blow Molding Machine

Model: HY-400,450,550,650,750,800,900,1000,1200,1500

Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Extrusion Blow Molding Machines

Online Inquiry

Characteristics

Manufacuring range of blow molding machine indluding Single-Head, Double-Head or Multi-Head eooperates with Single-Station or Twin Stations to blow molding the parts with Single, Two or Multi-color and Single, Double or Multi-Layers to meet with demand from territories including Chemical Egineering, Cosmetics, Medicine, Stationery, Inspection, Sanitary, Foods, Drink and Auto Parts, etc...

Specifications

Blow moding machine Had been developed from mannual to pneumatic then automatic hydraulic operation system to suitable blowing application of PE, PP, PS, PC, PVC, NYLON, PET, PETG, and PU, etc..,and production range covered from 5c.c.to 220 litters of volume containers.

HY Model No. 型號		HY-400	HY-450	HY-500	HY-550	HY-650	HY-750	HY-800
HY Model No. 型號		Single Head 單頭
Material		PE/PP/PU
Screw diameter	m/m	40	45	50	55	65	75	80
Screw L/D ratio	L/D	22:01
Screw ration speed	r . p.m.	15-60	20-80	20-80	20-80	20-80	20-80	20-80
Drive motor	HP	5	7½	10	10	20	30	30
Oil hydraulic drive motor	HP	5	5	7½	7½	10	10	10
Compress air consumption	HP	3					5
Pressure of air	kg/cm²	4/6				5/7
Mold clamping force	ton	1.9	2.6	2.9	3.4	5.7	13.3	21
Oil tank capacity	gallon	35	45	55	60	80	100	120
Number of heaters	ZONE	4					6
Heating capacity	kw	3.5	6.4	7.8	8	13	24	24
Total installed power	kw	13.5	20	23.5	23.5	37	56.5	56.5
Extruding capacity per hour	kg/hr	28	35	35	38	50	35-70	90
Dry cycle per hour	time/hr	1350	1150	1000	1000	850	700	650
Product capacity	c.c.	15-400	50-1000	100-2000	150-2500	500-6000	3000-10000	3000-25000
Weight of product	g	5-40	10-100	20-150	20-170	40-280	80-500	100-1000
Min./Max. diameter of product	m/m	10-75	20-100	20-100	30-140	50-200	80-260	140-350
Extruding mouth outer diameter	m/m	40	55	55	80	150	200	300
Mold open / close daylight	m/m	60-280	70-380	70-400	80-500	80-500	200-600	200-670
Length of mold	m/m	160×400	220×500	220×500	280×600	280×650	500×650	500×650
Width of mold	m/m	160	160	220	220	240	450	450
Machine net weight	kg	1700	2100	2500	2800	4000	5800	5800
Gross Weight	kg	2200	2700	3200	3500	5000	6800	6800
Machine dimension	M	2.1×1.5×1.8	2.5×1.8×2	2.1×2×2.1	2.8×2.1×2.35	2.8×2.1×2.5	3.2×3.3×3.5	3.2×3.3×3.5
Box dimension	M	2.3×1.7×2.0	2.7×2.0×2.15	2.7×2.2×2.15	3.0×2.2×2.5	3×2.15×2.7

HY Model No. 型號		HY-400 D	HY-450 D	HY-550 D	HY-650 D	HY-750D (HY-800D)
HY Model No. 型號		Double Head 雙頭
Material		PE/PP
Screw diameter	m/m	40	45	55	65	75 (80)
Screw L/D ratio	L/D	24/1				22/1
Screw ration speed	r.p.m.	20-66		15-60		15-58
Drive motor	HP	5	7½	10	20	30
Oil hydraulic drive motor	HP	5	7½	1		15
Compress air consumption	HP	3				5
Pressure of air	kg/cm²	4-6			5-7
Mold clamping force	ton	2.1	2.9	3.4	5.7	21
Oil tank capacity	gallon	38	55	60	80	120
Number of heaters	ZONE	6				9
Heating capacity	kw	6	8.4	11.5	14.3	21
Total installed power	kw	15.5	21.5	30.5	37	55
Extruding capacity per hour	kg/hr	17	24	36	48	60
Dry cycle per hour	time/hr	1285	1028	880	700	650
Product capacity	c.c.	15-160	40-400	100-1000	280-2500	500-10000
Weight of product	g	4-25	5-40	10-65	20-110	30-500
Min./Max. diameter of product	m/m	10-65	20-70	30-85	40-100	175
Extruding mouth outer diameter	m/m	37	42	50	65	150
Mold center distance	m/m	85	100	120	140	200
Mold open / close daylight	m/m	50-230	50-320	50-410	140-650	160-670
Length of mold	m/m	100-210	120-290	140-330	160-340	200-450
Width of mold	m/m					450
Mould dimension [L×W]	m/m	225×250	225×300	315×320	330×360	700×450
Machine net weight	kg	1700	2400	3200	4100	5100
Gross Weight	kg	2200	2900	3900	4900	6300
Machine dimension	m	2.3×1.7×2.2	2.6×1.85×2.3	2.9×1.9×2.45	3.1×2.0×2.5	3.8×2.3×3
Box dimension	m	2.75×1.9×2.25	2.85×2.15×2.4	3.2×2.15×2.35	3.2×2.3×2.3	3.9×2×2.5

HY Model No. 型號		HY-450D-2	HY-550D-2	HY-650D-2	HY-800D-2
HY Model No. 型號		Double mould station Double Head 雙模架雙頭
Material		PE
Screw diameter	m/m	45	55	65	80
Screw L/D ratio	L/D	22/1
Screw ration speed	r.p.m.	15-60		15-58	15-50
Drive motor	HP	7½	10	20	30
Oil hydraulic drive motor	HP	15		20	30
Compress air consumption	HP	5	7½
Pressure of air	kg/cm²	4-6	5-7
Mold clamping force	ton	2.9	3.4	5.7	13.3
Oil tank capacity	gallon	110	120	160	200
Number of heaters	ZONE	5		6	8
Heating capacity	kw	11	15	23	27
Total installed power	kw	30	35	55	60
Extruding capacity per hour	kg/hr	35	40	50	70
Dry cycle per hour	time/hr	1028×2	880×2	700×2	500×2
Product capacity	c.c.	40-500	100-1200	280-2500	400-4500
Weight of product	g	5-40	10-65	20-110	30-500
Min./Max. diameter of product	m/m	20-70	30-85	40-110	50-200
Extruding mouth outer diameter	m/m	42	50	65	150
Mold center distance	m/m	100	120	140	200
Mold open / close daylight	m/m	70-380	70×420	80×500	160-750
Length of mold	m/m	195-300	250-310	300-350	400-500
Width of mold	m/m				450
Mould dimension [L×W]	m/m	225×300	315×320	330×360	700×450
Machine net weight	kg	4900	6300	7700	9800
Gross Weight	kg	6000	7500	9000	9800
Machine dimension	m	2.17×2.32×2.04	2.4×2.5×2.32	3×2.54×2.6	3.3×2.8×2.8
Box dimension	m	2.4×2.6×2.2	2.65×2.8×2.5	3.2×2.9×2.8	3.5×3.1×3

HY Model No. 型號		HY-1000TL	HY-1200TL	HY-1500TL
HY Model No. 型號		SINGLE HEAD / ACCUMULATOR +ONE POINT PARISON CONTORL 單頭 / 蓄料式+一點厚薄控制
Material		PE
Screw diameter	m/m	100	120	150
Screw L/D ratio	L/D	22/1
Screw ration speed	r.p.m.	15-60	15-53	15-50
Drive motor	HP	50	60	75
Power of thichness contral	HP	5
Oil hydraulic drive motor	HP	75	100	150
Compress air consumption	HP	7½	10	15
Pressure of air	kg/cm²	5-7
Mold clamping force	ton	55	62	100
Oil tank capacity	gallon	350	500	750
Number of heaters	ZONE	7	8	8
Heating capacity	kw	45	53	65
Total installed power	kw	137	172	180
Extruding capacity per hour	kg/hr	100	130	150
Dry cycle per hour	time/hr	300	260	200
Product capacity	liter	20-75	50-120	75-200
Max. capacity	KG	5	8	13
Min./Max. diameter of product	m/m	180-580	260-650	300-700
Extruding mouth outer diameter	m/m	420	420	500
Mold open / close daylight	m/m	260-1100	400-1600	500-1800
Length of mold	m/m	400-1100	600-1400	700-1600
Width of mold	m/m	830	1000	1200
Machine net weight	kg	13000	16000	21000
Gross Weight	kg	16000	20000	33000
Machine dimension	m	4.8×4×4.5	5.2×4.3×5.7	6×5×6.5
Box dimension	m	4.6×2.3×3.1	5×2.5×3.3	5.8×2.8×3.5
Die head dimension	m	2.6×1.2×1.3	3.2×1.3×1.34	3.5×1.5×1.6
Mold support dimension	m	4.1×1.5×1.9	4.4×1.6×2.0	5×2×2.2

HY Model No. 型號		HY-900E-I PE/TOOL BOX USE Single head 單頭	HY-1000E-I PE/TOOL BOX USE Single head 單頭	HY-900E-I PE/PP Single head 單頭	HY-1000E-I PE/PP Single head 單頭	HY-1200E-I PE/PP Single head 單頭
Screw diameter	MM	90	100	90	100	120
Screw L/D ratio	L/D	20/1	20/1	20/1	20/1	20/1
Vs drive motor	HP	/	/	/	/	/
Drive type	C.C.	2200	3100	/	/	/
Motor 6 pole	HP	/	/	50	60	75
Screw rotating speed	R.P.M.	30-70	25-68	30-70	15-60	15-53
Number of heater	ZONE	7	7	7	7	8
Heating capacity	KW	35	45	35	44.1	53
Extruding capacity per hour	kg/hr	90	110	90	110	130
Extruding mouth outer diameter	MM	320	420	320	420	420
Mold center distance	MM	/	/	/	/	/
Accumulator	liter	3/5	5/8	3/5	5/8	8/13
Mold open / close daylight	MM	260-1000	260-1100	260-1000	300/1400	400/1600
Length of mold	MM	350-950	400-1100	350-950	500/1200	600/1400
Width of mold	MM	730	830	730	900	1000
Dry cycle per hour	time/hr	400	450	400	350	260
Oil hydraulic drive motor	HP	60	75	60	75	100
Mold clamping force	TON	26	47	26	55	62
Power of one step thickness control	HP	3	3	3	5	5
Oil tank capacity	gallon	200	250	200	250	250
Pressure of air	kg/cm	5/7	5/7	5/7	5/7	5/7
Compressed air consumption	HP	5	7½	5	7½	10
Min./Max. diameter of product	mm	150-400	150-500	150-400	180-580	250-650
Weight of product	G	/	/	/	/	/
Product capacity	LITER	15-40	20-75	15-40	30-120	50-200
Total installed power	KW	83	104	83	130	165
Machine net weight	KG	11500	14000	11500	16000	19000
Gross weight	KG	14500	17300	14500	20000	23000
Machine dimension	M	4.8×2.2×4.4	5×2.3×4.9	4.8×2.2×4.4	4.8×4×4.6	5.2×4.3×5.8
Box dimension	M	4.88×2.27×2.93	5.61×2.44×3.34	4.88×2.27×2.93	4.6×2.3×3.1	5×2.5×3.3
Die head dimension	M	2.73×1×1.18	3.1×1.18×1.3	2.73×1×1.18	3.1×1.2×1.3	3.2×1.3×1.4
Mold support dimension	M	/	/	/	4.1×1.5×1.9	4.4×1.6×2.0
