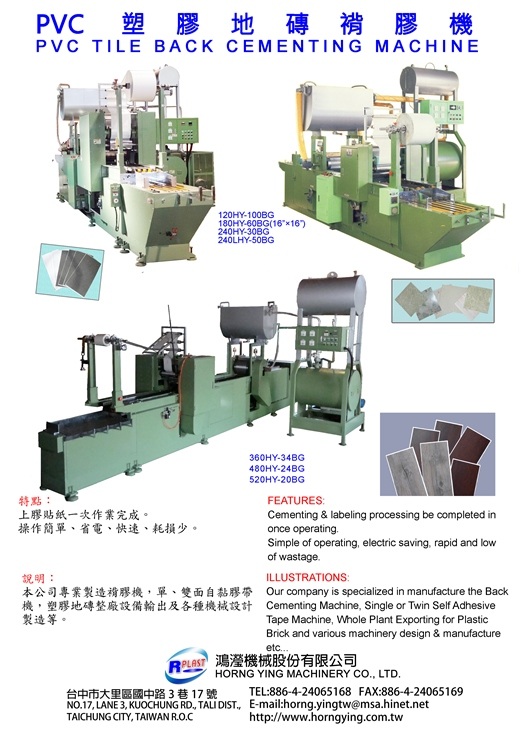

PVC TILE BACK CEMENTING MACHINE

Enlarge

PVC TILE BACK CEMENTING MACHINE

Model: 120HY-100BG,180HY-60BG,360HY-34BG,480HY-24BG

Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Coating Machines

Online Inquiry

Characteristics

Our company is specialized in manufacture the Back Cementing Machine, Single or Twin Self Adhesive Tape Machine, Whole Plant Exporting for Plastic Brick and various machinery design &manufacture etc.,

FEATURES:
Cementing & labeling processing be completed in once operating
Simple of operating, electric saving, rapid and low of wastage.

Specifications

型號 MODEL	120HY-100BG	180HY-60BG (16"×16")	240LHY-50BG	240HY-30BG
原料 Material	熱熔膠 Hot Melt	熱熔膠 Hot Melt	熱熔膠 Hot Melt	熱熔膠 Hot Melt
產能 Product Cap Acity	100 pcs/min	60 pcs/min	50 pcs/min	30 pcs/min
產品尺寸 Product Thickeness	1.2~3mm 12"×12"	1.2~3mm 18"×18" (16"×16")	1.2~3mm 12"×24"	1.2~3mm 24"×24"
電熱 Electric Heater	6KW×4＝24KW	6KW×4＝24KW	6KW×6＝36KW	6KW×6＝36KW
總用電量 Total Electric Power	30KW	33.75KW	54KW	54KW
機械重量 Mechine Weight	2500KG	4000KG	5500LG	5500KG
機械尺寸 Machine Size	L × W × H 5000×1260×2140mm	L × W × H 7300×1260×2450mm	L × W × H 9050×1260×2720mm	L × W × H 9500×1400×2760mm
佔地面積 Install Measurement	L × W × H 5000×2950×2560mm	L × W × H 7300×2880×2990mm	L × W × H 9050×3162×3100mm	L × W × H 9500×3130×3400mm

型號 MODEL	360HY-34BG	480HY-24BG	520HY-20BG
原料 Material	熱熔膠 Hot Melt	熱熔膠 Hot Melt	熱熔膠 Hot Melt
產能 Product Cap Acity	34 pcs/min	24 pcs/min	20 pcs/min
產品尺寸 Product Thickeness	1.2~3mm 3"~9"W×36"L	1.2~3mm 3"~9"W×48"L	1.2~3mm 3"~9"W×48"L
電熱 Electric Heater	6KW×4＝24KW	6KW×4＝24KW	6KW×4＝24KW
總用電量 Total Electric Power	33.75KG	37.51KW	41KW
機械重量 Mechine Weight	4000KG	5000KG	5500KG
機械尺寸 Machine Size	L × W × H 6765×1370×2420mm	L × W × H 8730×1470×2720mm	L × W × H 9140×1470×3233mm
佔地面積 Install Measurement	L × W × H 6765×3120×2895mm	L × W × H 8730×3120×3150mm	L × W × H 9140×3120×3233mm
