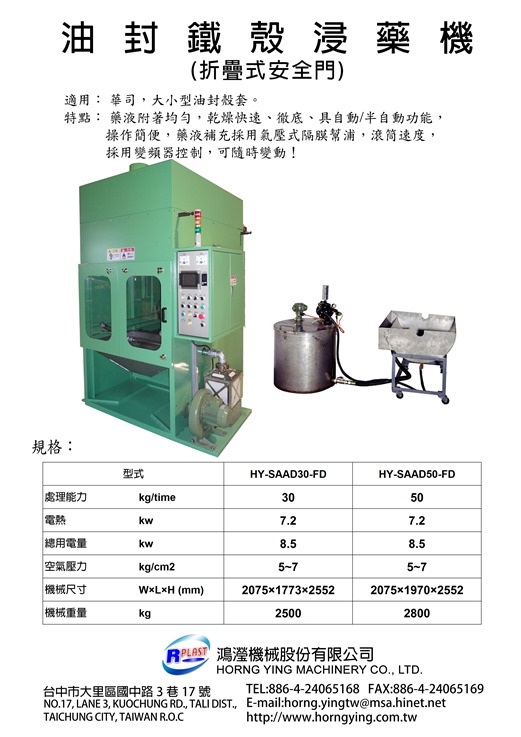

SEAL ADHESIVE APPLYING DEVICE MACHINE
Model: HY-SAAD30,SAAD50
Category: Plastic and Rubber Industry / Rubber Processing Machinery / Other Rubber Processing Machines
Characteristics
This machine is specially designed for：Washer large and small type of seal iron shell.
Features：
Drug liquid adhesive uniformity dryer very quickly and completely.
The operation adopted automatic/hand control model for easy operate.
Adopt the air-drive diaphragm pump for drugliquid supply.
Adopt the inverted control speed of the roller. Can be changed at any time.
One worker can be handle several machinesat same time. Arise worker is efficiency and capacity.
Specifications
| MODEL | HY-SAAD30-FD | HY-SAAD30-FD | |
| Capacity per times | kg/time | 30 | 50 |
| Heating capacity | kw | 7.2 | 7.2 |
| Total power consumption | kw | 8.5 | 8.5 |
| Pressure of air | kg/cm2 | 5~7 | 5~7 |
| Machine Dimension | W×L×H(mm) | 2075×1773×2552 | 2075×1970×2552 |
| Machine Weight | kg | 2500 | 2800 |
