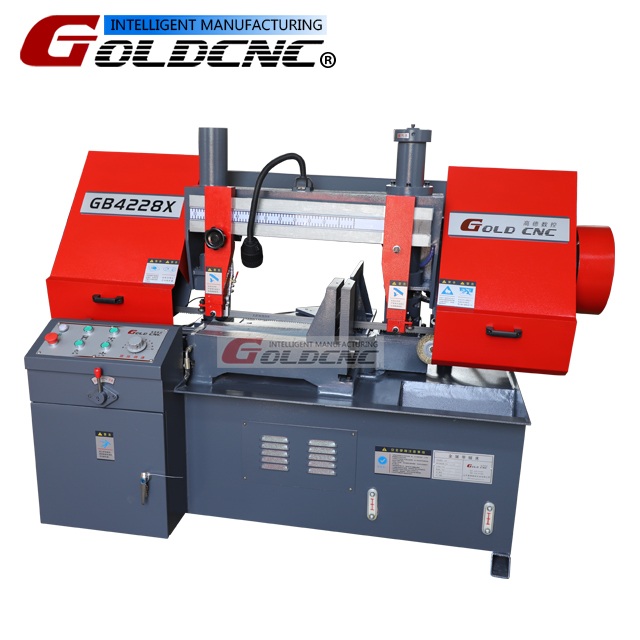

GB4228X sawing machine,metal banding saw machine,band saw iron cut machine
Model: GB4228X
Category: Machine Tools / Sawing Machines / Band Saws, Horizontal Type
Characteristics
New horizontal saw machine,GB4228X angle cut 45°,60° band saw machine for metal cutting,metal band sawing machine,
GOLD CNC provides angle metal band saw machine for you.
The structure of the sawing machine is a double column.
The saw machine series can be divided into: numerical control series, ordinary double column series, ordinary Longmen line rail series and corner series.
Specifications
New horizontal saw machine,GB4228X angle cut 45°,60° band saw machine for metal cutting,metal band sawing machine,
GOLD CNC provides angle metal band saw machine for you.
The structure of the sawing machine is a double column.
The saw machine series can be divided into: numerical control series, ordinary double column series, ordinary Longmen line rail series and corner series.
The model of Angle saw machine is divided into: GB4228X/4235X/4240X/4250X/4260X.
Specifications GB4228X
Max.cutting(mm) 0° 280W×280H ,45° 240W×240H, 60° 80W×80H
Saw blade speed(m/min) 27、45、69
Saw blade size(mm))27×0.9×3850
Main motor(kw) 3
Hydraulic motor(kw)0.55
Main transmission structure Worm gear transmission
Band saw blade tensioning method Manual
Working clamping mode Hydraulic vice
Cleaning wire brush & flood coolant
Cooling motor power(kw) 0.09
Dimensions(mm)1900×1300×1500
