Specifications

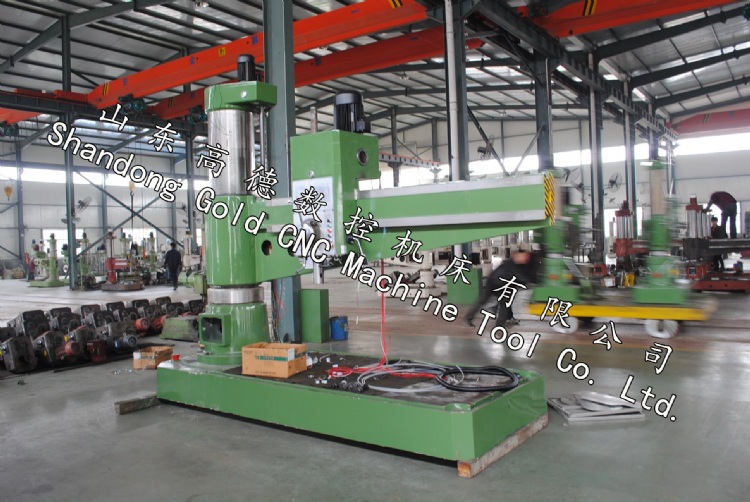

Z3080 radial drilling machine has a maximum drilling diameter of 80mm, which can be used for drilling metal materials. It can also be used for various forms of machining, such as reaming, reaming, tapping and scraping the end face. According to the clamping structure of machine tools, it can be divided into hydraulic rocker arm drilling machine and mechanical rocker arm drilling machine. Rocker arm drilling machine is easy to operate, flexible, wide range of application, especially suitable for single or batch production with large-scale porous parts of the hole processing, is a common machine shop equipment.

SPECIFICATIONS Z3080X25

Max. drilling dia(mm) 80

Distance from spindle nose to table surface(mm)    550-1600

Spindle center to column generating distance     500-2500

Spindle travel (mm) 400

Spindle Cone 6

Range of spindle speeds(r.p.m) 20-1600

Spindle speed series   16

Spinde feeding range(r.p.m) 0.04-3.2

Spinde feeding step 16

Rocker rotary angle   360

Main motor power (kw) 7.5

Movements motor power(kw) 1.5

Machine weight 11000

Overall dimensions(mm) 3500x1450x3300
