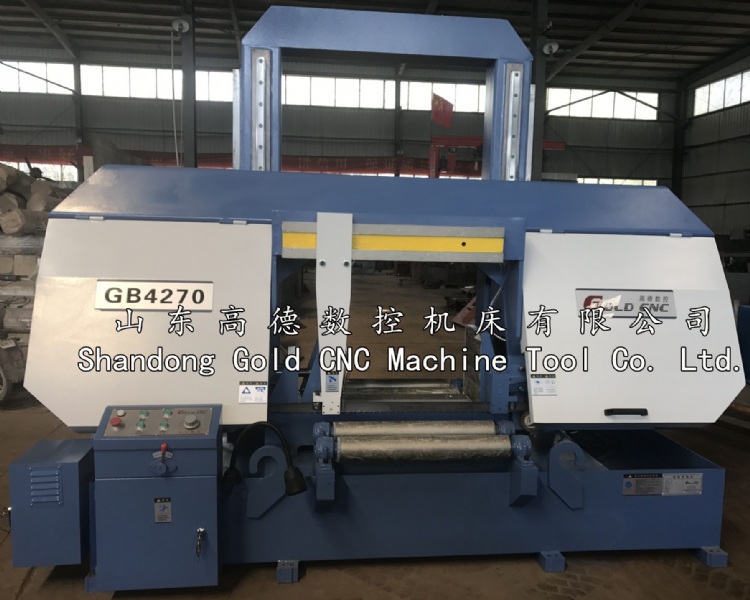

saw machine GB4270 gantry horizontal band sawing machine,High quality metal cutting saw machine

Gold CNC provides large gantry  metal band saw machine for you.
This series of products are gantry track structure.
The saw machine series can be divided into: numerical control series, ordinary double column series, ordinary Longmen line rail series and corner series.
The model of ordinary double column series saw machine is divided into: GB4260/4270/4280/4290/42100/42120/42130/42150.

Specifications GB4270

Max.cutting（mm） 700W×700H

Saw blade speed（m/min） 20-80

Saw blade size（mm））54×1.6×7300

Main motor（kw） 7.5

Hydraulic motor（kw） 1.5

Main transmission structure Worm gear transmission

Band saw blade tensioning method Manual

Working clamping mode Hydraulic vice

Cleaning wire brush & flood coolant

Cooling motor power（kw） 0.125

Dimensions(mm) 3700×1500×2200
