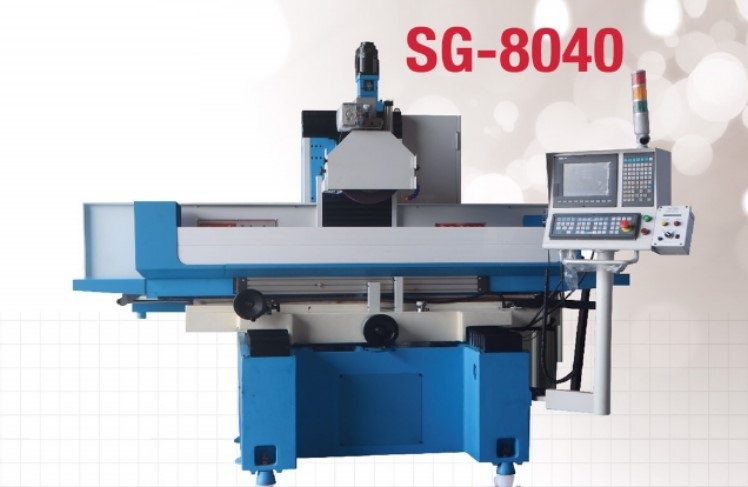

Surface Series Grinder SG-8040



Model: SG-8040

Category: Machine Tools / Grinding Machines / CNC Surface Grinding Machines



Online Inquiry





Characteristics



1. Stable left and right workbench
"The left and right worktable of this machine adopt V-shaped and flat design with slide rails. The sliding surface adopts the most advanced friction and wear-resistant Turcite B (wear-resistant sheet) and is processed by precision shoveling.
With a low-resistance cylinder for high-speed movement back and forth, making high-precision grinding possible."

2. Flat grinding and molding grinding are easy to complete
"Upper-lower spindle head and front-rear bed bases are equipped with high-precision and high-rigidity linear rails, matched with AC servo motors to drive ball screws.
Fully achieve the multi-purpose of one machine."

3. High rigid structure design and automatic oil return equipment system
Made of FC30 high-grade cast iron, after annealing and natural aging treatment, the internal stress is completely eliminated, the accuracy of the machine is permanently maintained, and with the lubricant system that the lubricating oil automatically flows back to the oil tank. Reduce oil waste and increase the value of machine use.

4. Humanized CNC control system
The advanced and powerful PC Base controller can control 2-5 axis simultaneous movements. It is compatible with the operation formula developed by ARCH LIGHT. It has high affinity and easy operation. It is suitable for various grinding needs.
