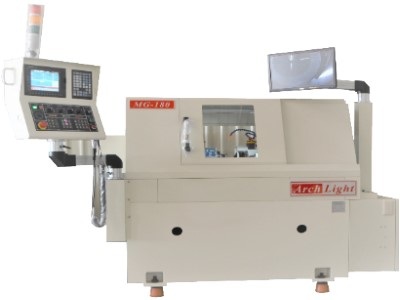

Internal External Cylindrical Grinder MG-180
Model: MG-180
Category: Machine Tools / Grinding Machines / CNC Internal Grinding Machines
Characteristics
Equipment characteristics
1. The machine with dual spindle can grind inner and outer diameter of round workpiece. It is equipped with Mitsubishi E70 CNC controller, interactive screen operation.
2. Workpiece outer diameter grinding Ø2-->Ø100; inner diameter grinding Ø4-->Ø20
3. With CCD image projection system, the fine inner hole is ground for easy observation and positioning
4. The base and saddle of the machine are made of high-grade Meehanite cast iron and tempered and heat treated, and the machine is stable for a long time
Specifications
Conversational and customizable operation interface
Language : Traditional Chinese/Simplified Chinese/Japanese/English
Operation interface: touch dialogue
Control system: Syntec, Fanuc or Mitsubishi (optional)
Specification
Item | Model | Unit | Size/Value |
Actuating stroke | Processing maximum outer diameter (length) | 80 | |
Maximum processing outer diameter of the workpiece | mm | Ø100 | |
Processing inner hole processing range | mm | Ø2~Ø80 | |
Processing depth | mm | 50 | |
Z axis maximum movement speed / minimum displacement unit | m/min | 12 / 0.0001 | |
mm | |||
X axis maximum movement speed / minimum displacement unit | m/min | 12 / 0.0001 | |
mm | |||
Wheel spindle | Inner hole grinding spindle speed | rpm | 40000~60000 |
Inner hole grinding spindle power | kw | 0.35 | |
Outer diameter grinding spindle speed | rpm | 2500~3400 | |
Outer diameter grinding spindle power | hp | 2hp 2p | |
Outer diameter grinding wheel size | mm | Ø180*13*Ø31.75 | |
Workpiece spindle | Workpiece spindle speed | rpm | 5~1720 |
Workpiece spindle power | hp | 2hp 4p | |
Workpiece spindle tool holder ER chuck and lathe chuck | ER32 and SC-03 change | ||
Control unit | Power distribution | kw | X-axis servo 0.75 / 5000rpm |
Mitsubishi E70 CNC controller | kw | Z-axis servo 0.75/ 5000rpm | |
Machine volume WxLxH | mm | 2100*2500*1930 | |
Machine weight | kgs | 2300 |
