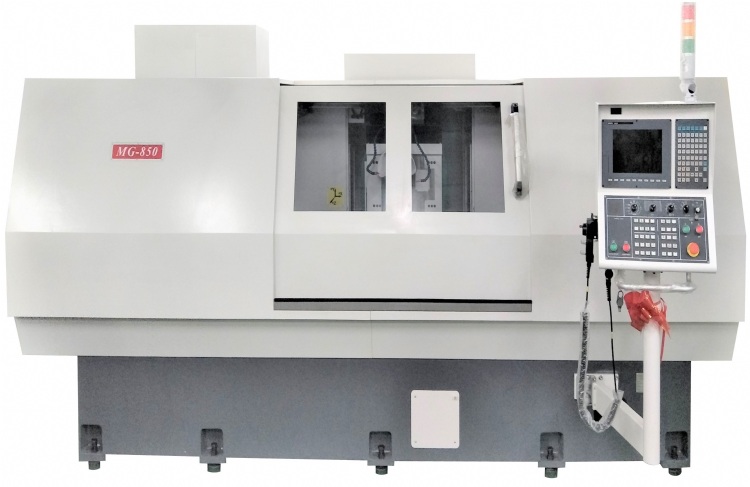

Broach Grove Grinder MG-850
Model: MG-850
Category: Machine Tools / Grinding Machines / CNC Grinding Machines
Characteristics
Equipment characteristics
1. The total length of the workpiece is 1050, and the grinding length of the groove can be 950
2. The machine can deal with broach groove or blade sharpening.
3. According to the customer's processing flow, the operation screen can be customized.
4. The high-precision spindle with 8,000rpm can get high-quality processing.
5. The rapid dressing mechanism shortens the production time of the process and improves production efficiency
Specifications
Conversational and customizable operation interface
Language : Traditional Chinese/Simplified Chinese/Japanese/English
Operation interface: touch dialogue
Control system: Syntec, Fanuc or Mitsubishi (optional)
Specification
ProjectN | ameU | nit | Size/Value |
Types of grinding | Grinding froove in round broach. | ||
XYZ axis movement | X axis maximum feed speed | m/min | 15 |
X axis stroke left and right | mm | 950 | |
Y axis maximum feed speed | m/min | 10 | |
Y axis stroke up and down | mm | 200 | |
Z axis maximum feed speed | m/min | 10 | |
Z axis stroke forward and backward | mm | 250 | |
Motor output | X axis servo | kw | 2.9 (Japan) |
Y axis servo | kw | 1.8 (Japan) | |
Z axis servo | kw | 2.9 (Japan) | |
Grinding wheel spindle | kw | 5 | |
A axis servo | kw | 2.9 (Japan) | |
Dressing spindle | hp | 1/2 4p | |
Cutting fluid pump & paper &magnetic powder filter motor | hp & w & w | 1/6 & 25 & 25 | |
Oil mist collector motor | kw | 0.56 | |
Wheel spindle | Axle diameter of grinding wheel | mm | Ø31.75 |
Use range of grinding wheel diameter | mm | Ø120~Ø230 | |
Maximum speed | rpm | 6000 | |
Dressing spindle | Spindle shaft diameter/wheel outer diameter | rpm | Ø31.75 / Ø150 |
Maximum speed | rpm | 3000 | |
Machine volume WxLxH | mm | 2630*4230*2170 | |
Machine weight | kg | 6500 |
