Auto-Cable Cross-linking Tester
Model: ST-6612
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics

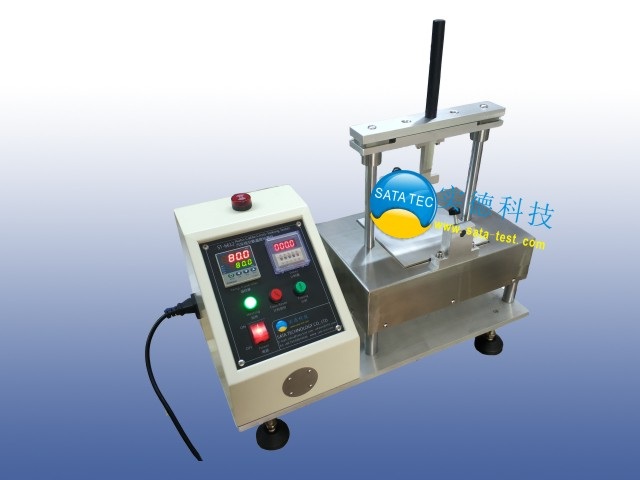

ST-6612 Auto-Cable Cross-linking Tester
Standards: Clause 6.12 of SAE J1128-2015
Used range: Applicable to the thin walled automotive cable, and the voltage lower than 60V/DC or 25V/AC
Specifications
ST-6612 Auto-Cable Cross-linking Tester
Standards: Clause 6.12 of SAE J1128-2015
Used range: Applicable to the thin walled automotive cable, and the voltage lower than 60V/DC or 25V/AC
Main parts: Electrical control box, heating plate, Temperature controller and timer etc.
Technical parameters:
- Test mandrel: Ф6mm and length is300mm
- Hot plate: 150*150mm and made by aluminum
- Load weight: 5-7N
- Timer: 0-99.99s/m/h
Constant temperature value on hot plate: 250±25℃
