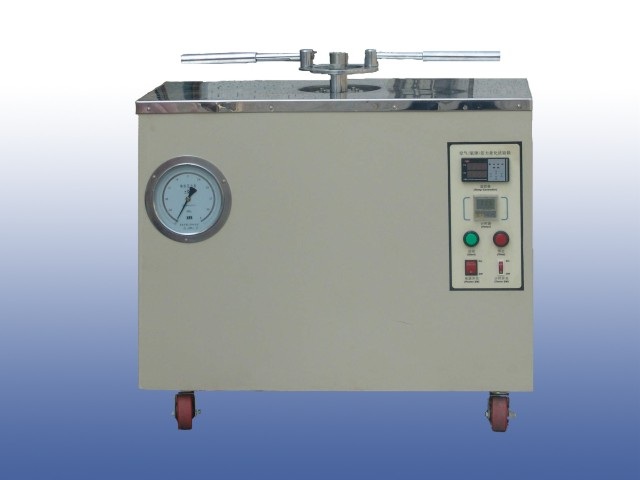

Oxygen / Air Bomb Aging Chamber
Model: ST-9605
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Standards: According to GB/T2951.12,IEC60811-1-2,IEC60335-1,GB4706.1,GB 4706.8, IEC60335-2-17,GB/T5013.2,IEC60245-2
Applicable scope: This machine applies to aging test for electrical wires & cables & rubber jacket& plastic & artificial leather, and other macromolecule materials. (Aging test via oxygen and compressed air in specified pressure and temperature).
Specifications
ST-9605 Air (&Oxygen) bomb Aging Oven
Standards: GB/T2951.12,IEC60811-1-2,IEC60335-1,GB4706.1,GB 4706.8, IEC60335-2-17,GB/T5013.2,IEC60245-2
Applicable scope: This machine applies to aging test for electrical wires & cables & rubber jacket& plastic & artificial leather, and other macromolecule materials. (Aging test via oxygen and compressed air in specified pressure and temperature).
Technical parameters：
- Maximum pressure: 2.5MPa
- Safety blow-up pressure: 2.7~3 MPa
- Pressure gauge: 0~4MPa,minimum scale 0.02Mpa
- Temperature controlling range: RT-150°C
- Effective volume: ≥4000cm3
- Temperature fluctuation: ±0.5°C
- Thermal ageing methods:
- Ageing in an air bomb: Air as medium, with the temperature 127°C, pressure 0.55±0.02MPa
- Ageing in an oxygen bomb: Oxygen as medium, with the temperature 70°C,pressure 2.1±0.07MPa
- Procedure of releasing pressure: As soon as the ageing period is completed, the pressure shall be released gradually so as to reach atmospheric pressure in not less than 5min
- Timer: 0.01S∼9999H setting freely. Buzz when reach the pre-set value
