Specifications

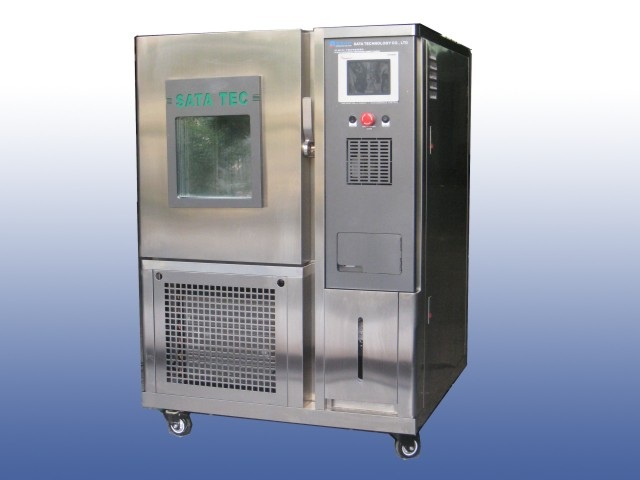

ST9602P Series Programmable Constant Temperature & Humidity Chamber

Features:

1.  Purpose & Functions: Used to measure the heat resistance, cold resistance, dryness resistance and humidity resistance of electronic, electrical appliances, metal, building materials, packaging materials and other similar materials.
2. Servo valve control of refrigerant flow calculations.
3. Temperature, humidity are rising or falling slope rate controller(IEC60068-2-56, IEC60068-2-30)
4. According to IEC60068, GB2423.1, GB2423.2, GB11158, GB10589 and GB10586 etc.
5.  RS232 Com port with professional installation software to record and save the test result.

Technical parameters:

1. Working room size: W700 * D800 * H900mm (504L), can be according to customer’s request for design;

2. Chamber size: W1260 * D 1320 * H 1920mm, which can be according to customer request for design;

3. Temperature range: -40°C∼+180 °C (air cooling method), which can be according to customer request for design;

4. Humidity range: 20 %∼98 % RH;

5.  Speed of temperature rise: >3°C /min (without load condition);

6.  Speed of temperature drop: >1°C /min(without load condition);

7.  Heating load: 6000W (40°C, 90%RH);

8.  Humidity stabilization: ±2%;

9.   Humidity fluctuation: ±3%;

10. Temperature stabilization: ±0.2°C;

11.  Temperature fluctuation: ±0.5°C
