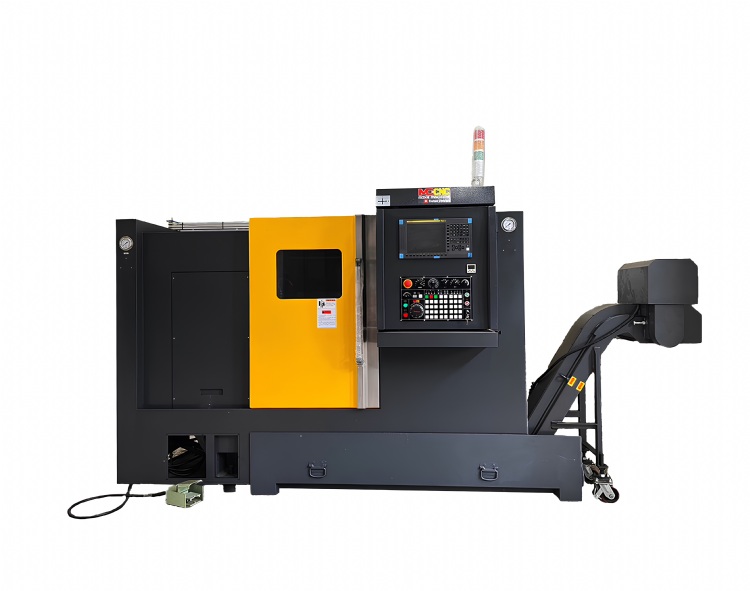

Slant Bed CNC Lathe (linear ways)
Model: MC-8500L
Category: Machine Tools / Lathes / CNC Lathes, Slant Bed Type
Characteristics
◎45° Slant bed features maximum stability and efficient chip disposal.
◎ The of the high-rigidity linear rail adopts a roller type configuration, which has large load, fast shifting and high positioning accuracy
▲ The base has a stable structure, high rigidity, and reinforced special ribs to demonstrate unique dynamic stability during high-speed cutting.
★ Box Ways, ldeal for Heavy Cutting.
★ Linear Ways, Designed for High Speed Machining.
Specifications
| Model 機型規格 | MC 8500H / L | ||
| Dia. Over Bed | mm | Φ470 | |
| Capacity | 床面旋徑 | ||
| 機械行程 | Max. Turning Diameter | mm | Φ230 |
| 最大加工直徑 | |||
| Max. Turning Length | mm | 480 | |
| 最大加工長度 | |||
| Spindle nose | ASA | A2-6 | |
| 主軸鼻端 | |||
| Spindle | Hydraulic Chuck Dia. | inch | 8” |
| 主軸 | 油壓夾頭 | ||
| Max. Spindle Speed | RPM | 4500 | |
| 最大轉速 | |||
| Max Torque | Nm | 191 | |
| 最大扭力 | |||
| X-axis Travel | mm | 140+20 | |
| Axis Feeds X/Z 軸 | X 軸行程 | ||
| Z-axis Travel | mm | 500 | |
| Z 軸行程 | |||
| Rapid Feed-Z/X-axis | m/min | H20 | |
| 軸向快速位移 | |||
| TYPE | Hydraulic | ||
| Turret | 型式 | ||
| 刀塔 | No. of Tools | T | 8 |
| 刀具數 | |||
| Boring Tool Size | mm | 25*25/Φ40 | |
| 搪刀尺寸 | |||
| TYPE | Hydraulic | ||
| 驅動方式 | |||
| Tailstock | Quill Dia. | mm | Φ70 |
| 尾座 | 尾軸管直徑 | ||
| Quill Stroke | mm | 80 | |
| 尾軸管行 | |||
| Cone | mm | MT4 | |
| 尾軸管錐度 | |||
| Diemesions | Height | mm | 1760 |
| 尺寸 | 高 | ||
| T3 | Overall Size | mm | 2950 x 1660 |
| 占地面積 | |||
