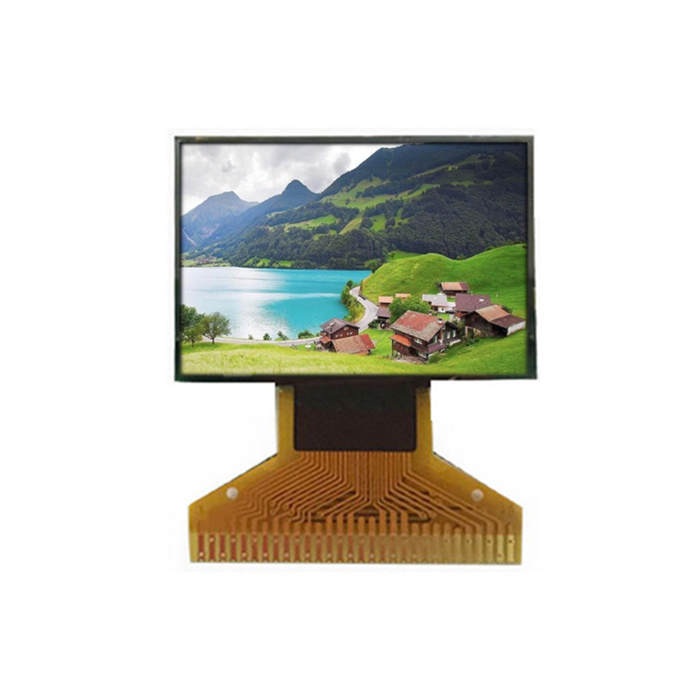

0.96 INCH AM OLED
Model: 0.96 INCH AM OLED
Category: Machinery Parts and Components / Metal Products / Wolfram steel
Characteristics
0.96 INCH AM OLED
Specifications
128*64 0.96" AMOLED Display DG-12864C-096
DG-12864C-096 is a 0.96" diagonal size AMOLED with 128*64 dots arrangement. It is well known for its excellent display quality, high contrast ratio, and high brightness. Our DG-12864C-096 is driven by SSD1315 chip, and supports 3 different activation methods: 8 bit parallel, 3 wire serial and I2C interface. High contrast ratio makes a wide viewing angle and its White or Yellow/Green text extremely clear. DG-12864C-096 uses 30 pin FPC COG as connector, and this can be modified according to client’s requirements. Due to its small size and power-save feature, it best suited to small kitchen appliances, price tags, wearable devices, and small medical equipment. Below are detailed specifications and drawing of DG-12864C-096. Welcome to send any inquiry regarding to this product.
AM OLED Display Specifications
|
Part No. |
DG12864C-096 |
|
Display type |
AMOLED |
|
Resolution |
128x64 |
|
Display color |
White |
|
Outline dimension |
26.70x19.26x1.4mm |
|
Viewing area |
23.74x12.86mm |
|
Dot size |
0.154x0.154mm |
|
Dot pitch |
0.160x0.160mm |
|
Controller |
SSD1315 |
|
Interface type |
8 bit parallel, 3 wire serial, I2C |
|
Connector |
30 pin FPC + COG |
|
Operating temperature |
-30~70℃ |
|
Storage temperature |
-40~80℃ |
|
Weight |
7g |
More details please click: www.dght-oledlcd.com
