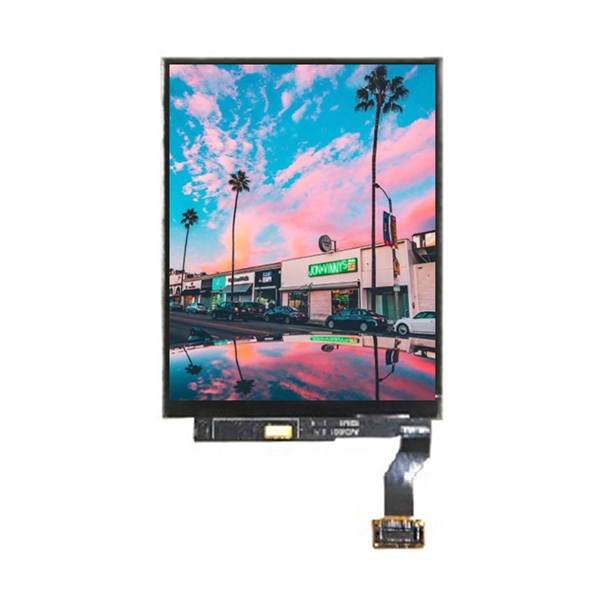

240*320 2.58" AMOLED Display DG-O240320-258A
Model: 240*320 2.58" AMOLED Display DG-O240320-258A
Category: Machinery Parts and Components / Machinery Parts and Components / Coolers
Characteristics
240*320 2.58" AMOLED Display DG-O240320-258A
Specifications
240*320 2.58" AMOLED Display DG-O240320-258A
DG-O240320-258A is an diagonal 2.58 inch AMOLED with 240*320 dot arrangement. It is designed to support MPU i80-system 8bit bus interface (RGB888) and full color mode. Self-emitting allows it to reach 200cd/m2 brightness and backlight unnecessary, Since it’s backlight-free, it is only 1.7 Typ mm thick. It will function well with -30 to 80°C operating temperature and -40 to 90°C storage temperature. This product can be customized according to client’s requirement. All these features make DG-O240320-258A a perfect choice for cell phone screen, hand-held appliances, portable devices, personal health appliances, and medium-size industrial and medical instrument. All of our products zre open to be custom-made.
|
Part |
DG-O240320-258A |
|
Diagonal Size |
2.58’’ |
|
Resolution |
240*320 RGB |
|
Pixel Pitch |
0.056*0.168 mm |
|
Active Area |
39.6*52.48 mm |
|
Module Size |
44.48*62.35 mm |
|
Brightness |
200cd/m2 |
|
Thickness |
1.7Typ mm |
|
Voltage |
3.3V |
|
Connector |
24 pin FPC |
|
Brightness |
350 (Typ.) |
|
Operating Temp |
-30 to 80°C |
|
Storage Temp |
-40 to 90°C |
|
Color Mode |
Full Color (16.7M Color) |
|
Driving Mode |
Active Matrix |
|
Interface |
MPU i80-system 8bit bus interface (RGB888) |
Dianguang Hi Tech Electronics is one of top OLED display module manufacturers with rich experience in different projects, we can evaluate carefully and recommend the most suitable displays for your project.
