Character LCD MODULE ,132*320 dots
Model: Character LCD MODULE ,132*320 dots
Category: Machine Tools / Machining Centers / Machining Centers, Horizontal
Characteristics
Character LCD MODULE ,132*320 dots
Specifications
Character LCD Module, 132*32 dots,
FSTN, Positive, without backlight,
SPI , 3.3V, Driver IC:ST7565R

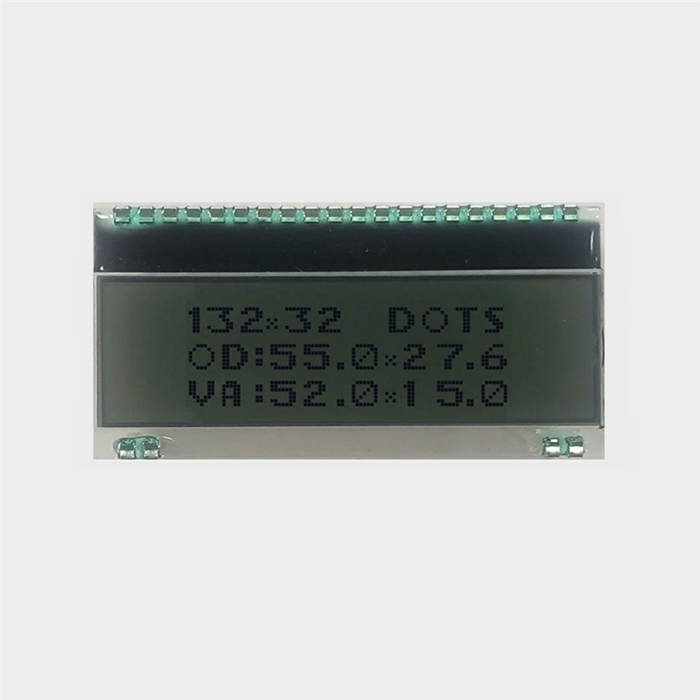

DGM13232L-R is a FSTN LCD Module with 132*32 resolution. It is built into 55x27.6x2mm (W*H*T) module size and 52.0*15.0mm (W*H) viewing area. It is driven by ST7565R controller IC, and supports SPI interface which communicated by 40 pins. It is capable of being operated within -20~70℃ and stored within -30~80℃ without compromising its functionality. All these features are open to be custome-made based on client’s demand.
Custom LCD MODULE Specifications:
|
Part No |
DGM13232L-R |
|
Resolution |
132x32 |
|
Module Size (W*H*T) |
55x27.6x2mm |
|
Viewing Area (W*H) |
52.0*15.0mm |
|
Dot Pitch |
0.365*0.415mm |
|
Dot Size |
0.345*0.395mm |
|
VDD |
3.3V |
|
Display mode |
FSTN positive |
|
Driver |
ST7565R |
|
Interface |
SPI |
|
Connector |
40 pin |
|
Operating Temp. |
-20~70℃ |
|
Storage Temp |
-30~80℃ |
