Specifications

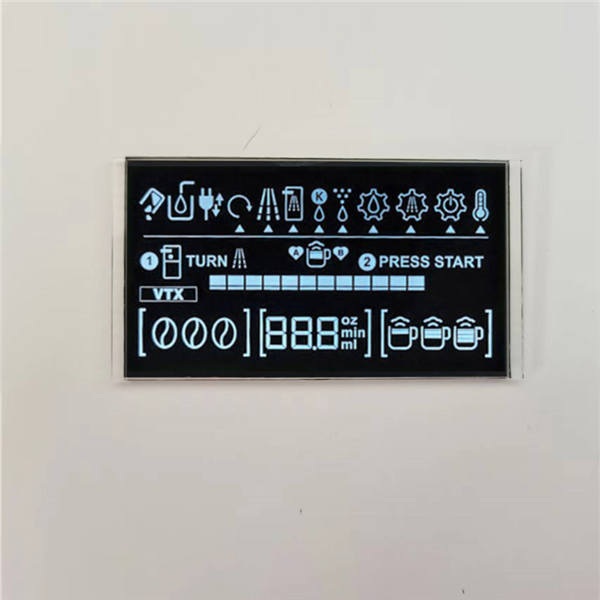

DG18007V is our VA LCD product made with transmissive/negative polarizer. It is driven by 1/3Duty 1/2Bias, and consumes 5.0V voltage when operating. It is 82mm width, 44mm height, and 2.8mm thickness. Unlike STN or HTN displays, DG18007V is connected by zebra instead of pins. The operating temperature is from 0℃~+70℃ and storage temperature is from -30℃~+80℃. It is used for coffee-machine.

We also provide backlight with different colors. Our white LED Backlight are used most often in electronic components and all types of LCDs, and make up virtually all mobile LCD screens. Other color LED backlight include orange, red, blue, green, and amber LED and can be controlled to produce different color temperatures of white. Customers have options for brightness from 60 cd/㎡ to 900 cd/㎡, wave length from 470 to 592, and uniformity from 70% to 75%.
