128*64 dots, Graphic LCD module
Model: 128*64 dots, Graphic LCD module
Category: Machinery Parts and Components / Machinery Parts and Components / Centralized Lubrication Systems
Characteristics
128*64 dots, Graphic LCD module
Specifications
128*64 dots, Graphic LCD module

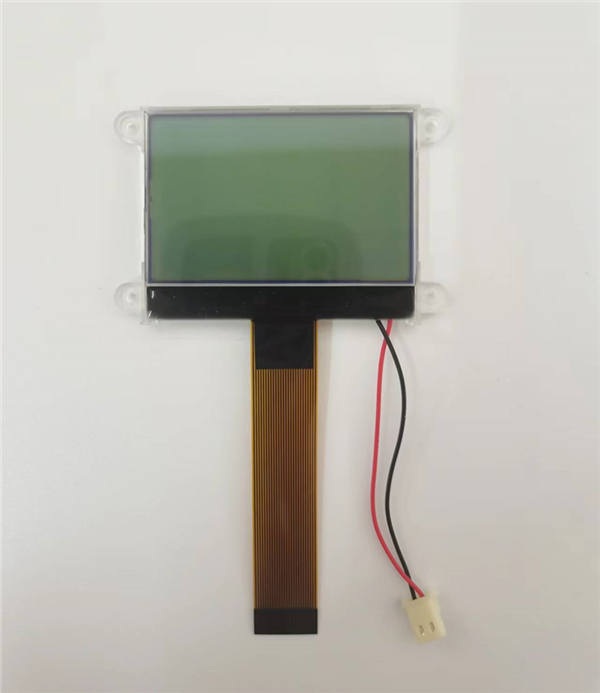

DGM12864-6843 is a mono 128x64 graphic LCD module with COG technology. It supports parallel interface 8080 series. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
It is designed for any embedded systems, industrial device, security, medical and hand-held equipment.
Specifications:
|
Part No |
DGM12864-6843 |
|
Module size (W*H*T) |
68.0*43.6*8.1 mm |
|
Viewing Area (W*H) |
50.0*31.5 mm |
|
Dot Pitch (W*H) |
0.335*0.41 mm |
|
Dot size (W*H) |
0.375*0.45 mm |
|
Interface |
parallel 8080 series |
|
Supply voltage (Logic) |
-0.3 to 3.3V |
|
Driving voltage (LCD) |
10.5V |
|
Operating temp |
-20℃ to 70 ℃ |
|
Storage temp |
-30℃ to 80℃ |
