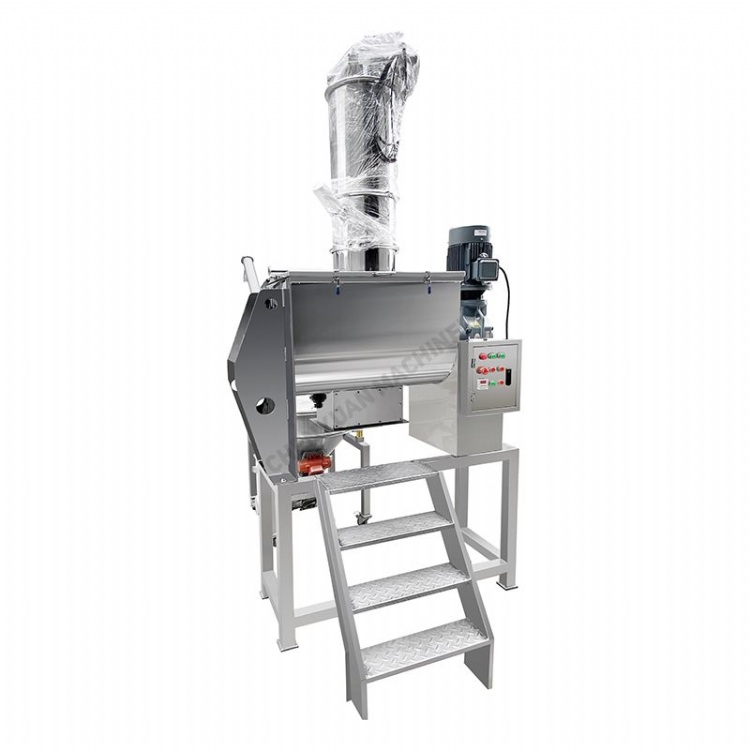

WLDH Horizontal Spiral Ribbon Mixer
Model: WLDH Horizontal Spiral Ribbon Mixer
Category: Machinery Parts and Components / Machinery Parts and Components / Fully Automatic Grease Supply Systems
Characteristics
WLDH Horizontal Spiral Ribbon Mixer
Specifications
The Horizontal Spiral Ribbon Mixer consists of a U-shaped container, a ribbon agitating blade and a transmission component; the ribbon-shaped blade is generally made into a double or triple layer, and the outer spiral gathers the material from both sides to the center, and the inner spiral the material transportes from the center to the sides to form a convective mixing. The ribbon mixer has good effects on the mixing of viscous or cohesive powders and granules and the mixing of liquid and paste materials in the powder. The cylinder cover can be made into a fully open door to facilitate cleaning and replacement of the equipment or product.
Technical Parameter
|
Model |
Full volume(M³) |
Loading coefficient |
Motor power(kw) |
Dimensions (L×W×H) |
Equipment weight |
|
WLDH-0.1 |
0.1 |
0.4-0.8 |
2.2 |
1190×740×770 |
330 |
|
WLDH-0.3 |
0.3 |
0.4-0.8 |
5.5 |
2030×630×980 |
720 |
|
WLDH-0.5 |
0.5 |
0.4-0.8 |
7.5 |
2320×730×1130 |
980 |
|
WLDH-1 |
1 |
0.4-0.8 |
11 |
2800×920×1320 |
1700 |
|
WLDH-1.5 |
1.5 |
0.4-0.8 |
15 |
3180×1020×1550 |
1800 |
|
WLDH-2 |
2 |
0.4-0.8 |
15 |
3310×1120×1640 |
2100 |
|
WLDH-3 |
3 |
0.4-0.8 |
18.5 |
3750×1290×1820 |
3000 |
|
WLDH-4 |
4 |
0.4-0.8 |
22 |
4200×1400×1990 |
3980 |
For more details please visit www.chenyuanmachinery.com
