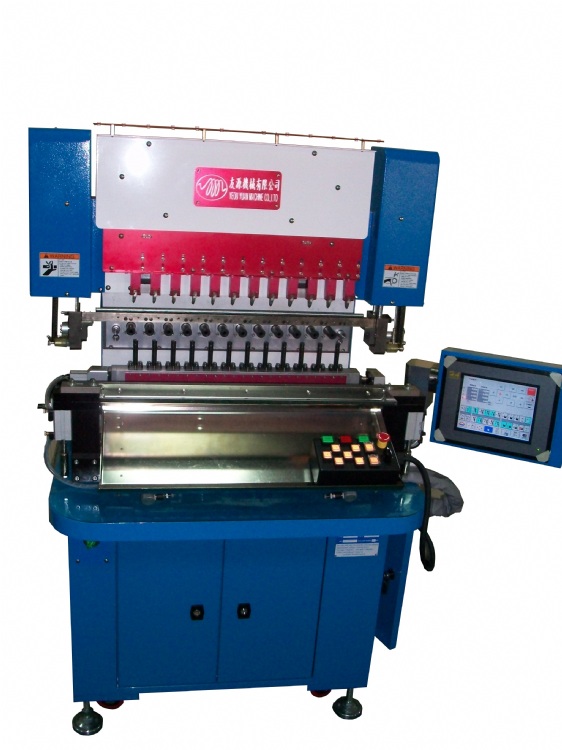

Winding Machine
Model: CMS-306/CMS-668/CMS-4512/CMS-3316
Category: Automatic/Industrial Machines & Equipments / Special Machine Tools / Winding Machines, Automatic Winding Machines
Characteristics
◆Unique human-machine interface
-Simple operation of the machine (within 5 minutes)
-Shortening of adjustment with touching screen
-Without another PC and keyboard connection
◆ Self diagnostics
◆ Quick and easy jig change
◆ Spiral PIN wrapping possible, 4 wrapping angle choices
◆CNC Servo motor transmission offering precise position at desire spindle speed
◆High turn speed with precise position stabilizing the winding arrangement
◆ Air nipper and other options acceptable
◆ Meeting an individual operation or a combination with production line
Specifications
1.Spindles: 16/12/10/8/6，positioning angle 360°
2.Spindle turn speed:
(1)9,000r.p.m. standard /turn clockwise or the reverse
(2)12,000r.p.m. standard /turn clockwise or the reverse
(3)18,000r.p.m. standard /turn clockwise or the reverse(Max)
3.Controller: four-axis synchronous servo control
4.Max nozzle move range:
(1)X axis(layering): 100mm
(2)Y axis (horizontal): 100mm
(3)Z axis (vertical): 55mm
5. Applicable coil spec.:
(1)max coil outer: Ø40mm
(2)max coil width: 90mm
6.Power: single phase AC 220V±10％，50/60 Hz
7.Machine weight: 310Kg
8.Machine dimensions: 1,400(L)x 780(W)x1,680(H)mm
9.Packing dimensions: 1,600(L)x 1,050(W)x1,750(H)mm
10.Positioning accuracy: 0.01mm
11.Nozzle move speed: 20∼200mm/sec
12.Wire size: 0.02∼0.4mm
13.Pin wrapping speed: 150r.p.m. (Max)
14.Pin wrapping angle: 0°、45°、90°、135°
15.Air supply: 4∼6 Kg-f/cm²
16.Power consumption: 3Kva
17.Storage: SDHC 32GB (MAX)
18.Options:
(1)Wire twister
(2)Tension unit
(3)Auto loading & unloading function
(4)Cutting nipper ( It can cut wire size 1mm by changing motor.)
