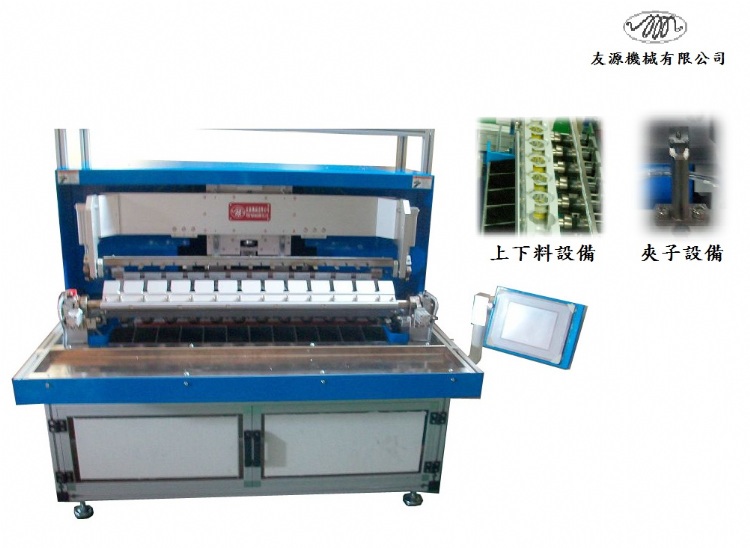

AUTO 12-SPINDLE LARGE SPAN HIGH SPEED COIL WINDER
Model: CMSS-8012
Category: Automatic/Industrial Machines & Equipments / Special Machine Tools / Winding Machines, Automatic Winding Machines
Characteristics
1.Unique touching interface.
-Chinese version, simple operation (within 5 minutes)
-Shorten of adjustment of touching screen.
-No need to connect with another PC and keyboard
2.Self diagnostics.
3. Synchronous function of 4 Servo motors, PIN spiral wrapping.
4. CNC Servo motor transmission offers precise position at desire spindle speed.
5. Quick and easy jig change.
6. 2 kind of angles for PIN wrapping .
7. High turning-speed with precise position, stabilized the winding arrangement.
8. Can be operated both Individual and with auto production line.
9.Match with auto feeding & unloading function, cutting, and air nipper device (special devices).
Specifications
1. Spindles: numbers of spindles:12， spindles positioning angle:360°
2. Spindles turn speed: 18,000 r.p.m. (Max)
3. Controller: four-axis synchronous servo control
4. Max nozzle move range:
(1)X axis(layering): 100mm
(2)Y axis (horizontal): 100mm
(3)Z axis (vertical): 55mm
5. Applicable coil spec.:
(1)Max coil outer dia.: Ø70mm
(2)Max coil width: 70mm
6. Power supply: Single phase AC 220V±10%，50/60Hz
7. Machine weight: 750Kg
8 .Machine dimension: 1,780(L)x 1,780(W)x1,620(H)mm
9. Packing dimensions: 1,880(L)x 1,880(W)x1,820(H)mm
10. Positioning accuracy: 0.01mm
11. Nozzle move speed: 1∼250mm/sec
12. Wire size: 0.03∼0.4mm
13. Pin wrapping speed: 150r.p.m.(Max)
14. Pin wrapping angle: 0°、90°
15. Air supply: 5∼6kg-f/cm²
16. Power consumption: 4Kva
17. Storage: SDHC 32G(MAX)
18. Options:
(1)Wire twister
(2)Tension unit
(3)Auto feeding & unloading function
(4)Cutting nipper ( It can cut wire size 1mm by changing motor.)
