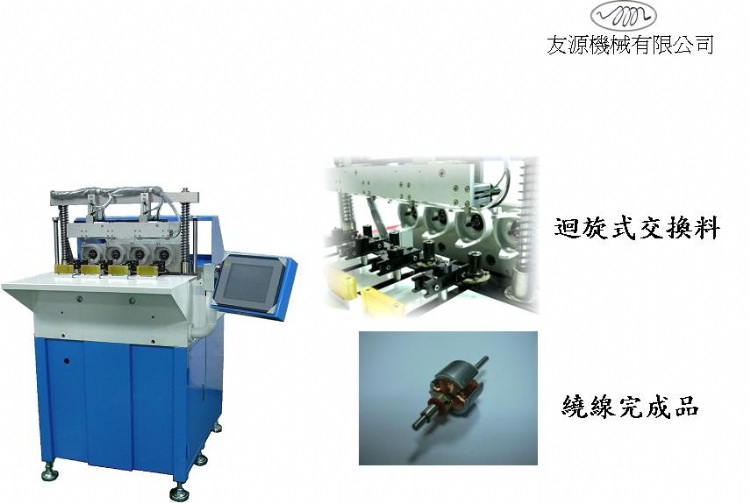

Auto Fan Motor Winder
Model: CFM-1204
Category: Automatic/Industrial Machines & Equipments / Special Machine Tools / Winding Machines, Automatic Winding Machines
Characteristics
1.Unique touching interface.
-Chinese version, simple operation (within 5 minutes)
-Shorten of adjustment of touching screen.
-No need to connect with another PC and keyboard
2. CNC AC Servo motor transmission offers a precise position at desire spindle speed.
3.Quick and easy jig change.
4. Independent feeding & unloading turning architecture increase the productivity.
5. Precisely tension unit control, ensuring winding quality.
6. Automatic wire assortment leaving no residual wire.
7. Any PIN wrapping angle choices bring the resulting of great compatibility of products.
8. Special transmission structure creates a highly flexible rigidity.
Specifications
1.Spindles: 4，positioning angle 360°，set unit 1°
2.Pitch: 120mm
3.Spindle turn speed: 6,000 r.p.m.( max)
4.Controller: CNC 4+1 axis AC motor servo control
5.Applied coil size:
(1) max outer dia: Ø45mm
(2) max stack height: 40mm
6.Power supply: single phase AC 220V±10％，50/60Hz
7.Machine weight:
(1)Net Weight: 380Kg
(2) Gross weight: 450 Kg
8.Machine dimensions: 1,100(L)x 1,090(W)x1,310(H)mm
9.Packing dimensions: 1,210(L)x 1,190(W)x1,410(H)mm
10.S-spindle positioning accuracy: 0.5°
11.Nozzle move speed: 20∼200mm/ sec
12.Wire size: 0.02∼0.3 mm
13.Pin wrapping speed: 150r.p.m. (Max)
14. Pin wrapping angle: 0°、45°、90°、135°
15.Air supply: 4∼6 Kg-f/cm²
16.Power consumption: 5Kva
17.Storage: SDHC 32G(MAX)
