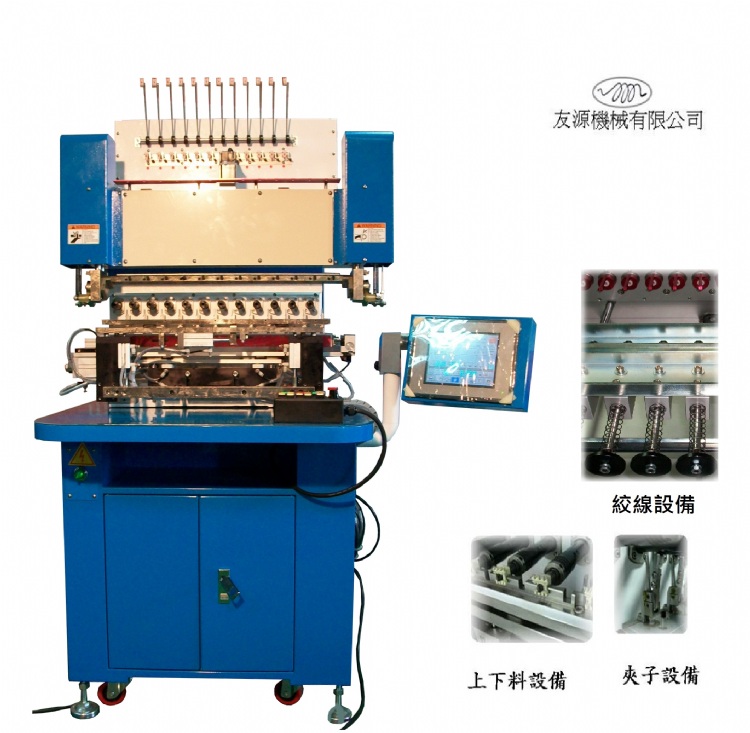

AUTO 12-SPINDLE WINDING/TWISTING MACHINE
Model: CMS -4512TT
Category: Automatic/Industrial Machines & Equipments / Special Machine Tools / Winding Machines, Automatic Winding Machines
Characteristics
1.Unique touching screen
-Chinese version, Simple operation (within 5 minutes)
-Shorten the adjustment of touching screen, without connecting with another PC and keyboard
-Self diagnostics.
2.Synchronous function of 4 Servo motors, PIN spiral wrapping.
3.CNC Servo motor transmission, offers the precise position at desire spindle speed.
4.Quick and easy jig change.
5.4 kind of angles for PIN wrapping .
6.High-speeding rotation with precise position, raise the winding capacity with high quality.
7.Can be operated both Individual and with auto production line. Moreover, it can match with auto feeding & unloading function, cutting, and air nipper device (special devices).
8.Adopting 32-bit ARM controller chips that makes the machine work more powerful, faster computing with high-speed but low-noise characteristics while twisting.
9.From starts until the end of stranding, it can increase and decrease the speed; guaranty it creates a larger torque while in high speed stranding.
Specifications
Winding Specification:
1.Spindles: 12，positioning angle 360°
2.Spindle turn speed:
(1)9,000r.p.m. standard /turn clockwise or the reverse
(2)12,000r.p.m. standard /turn clockwise or the reverse
(3)18,000r.p.m. standard /turn clockwise or the reverse(Max)
3.Controller: four-axis synchronous servo control
4.Max nozzle move range:
(1)X axis(layering): 100mm
(2)Y axis (horizontal): 100mm
(3)Z axis (vertical): 55mm
5. Applicable coil spec.:
(1)max coil outer: Ø40mm
(2)max coil width: 90mm
6.Power: single phase AC 220V±10％，50/60 Hz
7.Machine weight: 310Kg
8.Machine dimensions: 1,400(L)x 780(W)x1,680(H)mm
9.Packing dimensions: 1,600(L)x 1,050(W)x1,750(H)mm
10.Positioning accuracy: 0.01mm
11.Nozzle move speed: 20∼200mm/sec
12.Wire size: 0.02∼0.4mm
13.Pin wrapping speed: 150r.p.m. (Max)
14.Pin wrapping angle: 0°、45°、90°、135°
15.Air supply: 4∼6 Kg-f/cm²
16.Power consumption: 3Kva
17.Storage: SDHC 32G(MAX)
18.Options:
(1)Wire twister
(2)Tension unit
(3)Auto loading & unloading function
(4)Cutting nipper ( It can cut wire size 1mm by changing motor.)
Twister Specification:
1.Power supply: Single phase AC220V±10% ，50/60Hz
2.Spindle direction: Twist by clockwise
3.Total spindles: 4、6、8、12 and 16 spindles, or according to customers demand
4.Wire length: 150mm(Min)∼400mm(Max)
5.Wire size: 0.03~0.48mm
6.Spindle speed: 3,000r.p.m. (Max)
7.Power consumption: ≤500W
