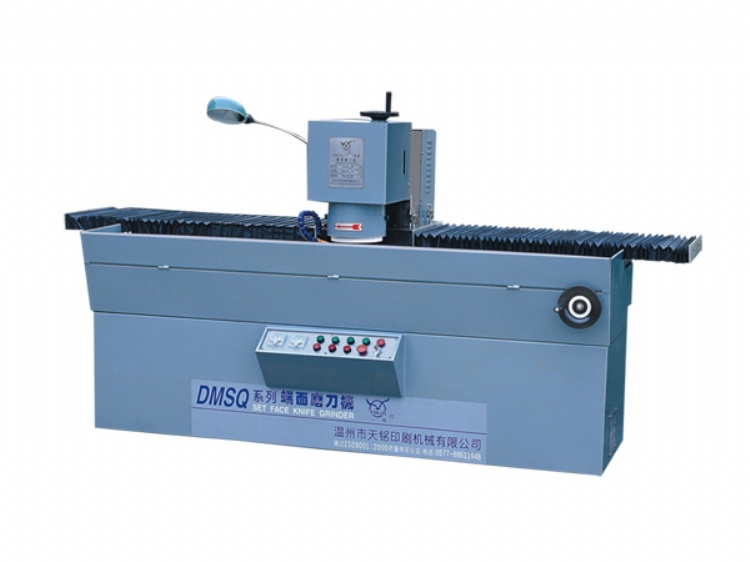

DMSQ-1700B(CE)Magnetic Grinder Electromagnetic sucker knife sharpener
Model: DMSQ-1700B
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Automatic Cutting Machines
Characteristics
Magnetic Grinder Model DMSQ-B
Magnetic Grinder Model DMSQ-B is my company in the traditional knife sharpener mechanical pressure based on the successful development of the third generation of electromagnetic sucker sharpener. Magnetic tool holder with suction units, suction uniform, even grinding line, safe and convenient, effectively improve the work efficiency.
Magnetic Grinder Model DMSQ-B is the printing, paper, wood, plastic leather, toilet paper and other industries essential ideal grinding equipment.
Magnetic Grinder Model DMSQ-B Main Function Deployment (excerpt)
Dovetail rails
Centralized refueling device
Dust device
Scraper jig (optional device)
Magnetic Grinder Model DMSQ-B Main technical parameters
Wheel Size------------------------------------------------------------------------Cup X200xX100x100 mm
Maximum grinding width-------------------------------------------------------taken 22Xas final 180 mm
Effective height of the grinding wheel and table-------------------------80 mm
Table rotation---------------------------------------------------------------------090 X
Grinding rotation speed--------------------------------------------------------1420 r/min
Grinding movement speed----------------------------------------------------6 m/min
Movement electromotor power-----------------------------------------------0.55 KW
Grinding head motor power---------------------------------------------------1.5 KW
Pump motor power--------------------------------------------------------------0.125 KW
Specifications
Magnetic Grinder Model DMSQ-B Main function / Technical parameters
Grinding wheel head: German East Y series three-phase asynchronous motor
Maximum grinding width: taken 22Xas final 180 mm
Fixed grinding head travel
Manual feed wheel
Rack and pinion
Cantilevered fuselage structure
Magnetic chuck tool holder table
Worm drive tool holder
Table rotation angle: 090X
-----------------------------------------------------------------------------------------------------------------
