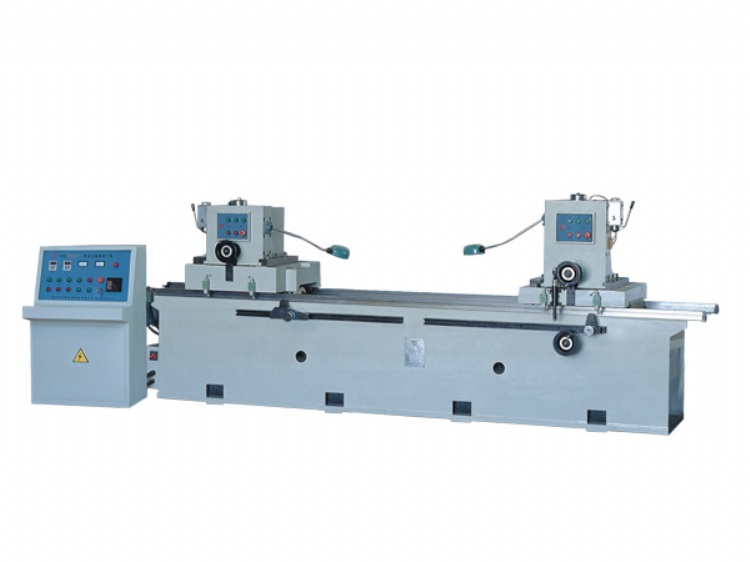

DMSQ-1600S(CE)Double Head-Precision Grinder Automatic Knife Sharpener



Model: DMSQ-1600S

Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Parts and Accessories for Industrial Machinery



Online Inquiry





Characteristics



Double Head-Precision Grinder Model DMSQ-S

Double Head-Precision Grinder Model DMSQ-S is a set of sharpening and polishing high-precision dual-function in one of the sharpener. Gantry body, structural stability, a special water-cooled grinding motors, cooling even without burning knife; Frequency Control, automatic wheel feed, with separate electrical console, to achieve a high degree of automation. Combined wool polishing wheel, remove the knife completely spent. Key parts of the key electrical and bearings are imported original hardware configuration and design techniques are industry leading.

Double Head-Precision Grinder Model DMSQ-S is sharpening center, medium-sized books, printing and other business users the ideal choice.

Double Head-Precision Grinder Model DMSQ-S Main Function Deployment (excerpt)

01. Location rolling linear guide rail
02. Centralized refueling device
03. Knife debris removal equipment
04. Imported electrical components (optional device
05. Scraper jig (optional device)

Double Head-Precision Grinder Model DMSQ-S Main technical parameters

Wheel Size Cylindrical--------------------------Φ200×Φ150×100（Φ300×Φ250×100）mm
Maximum grinding width--------------------------------------------------taken 22°as final 300 mm
Effective height of the grinding wheel and table-----------------------------------------------80 mm
Table rotation----------------------------------------------------------------------------------------0∼±90 °
Grinding rotation speed-----------------------------------------------------------Adjustable Frequency
Grinding movement speed-----------------------------------3∼15 m/min(Adjustable Frequency)
Movement electromotor power-----------------------------------------------------------------0.55 KW
Grinding head motor power---------------------------------------------------------------------3(7.5) KW
Pump motor power--------------------------------------------------------------------------------0.25 KW
