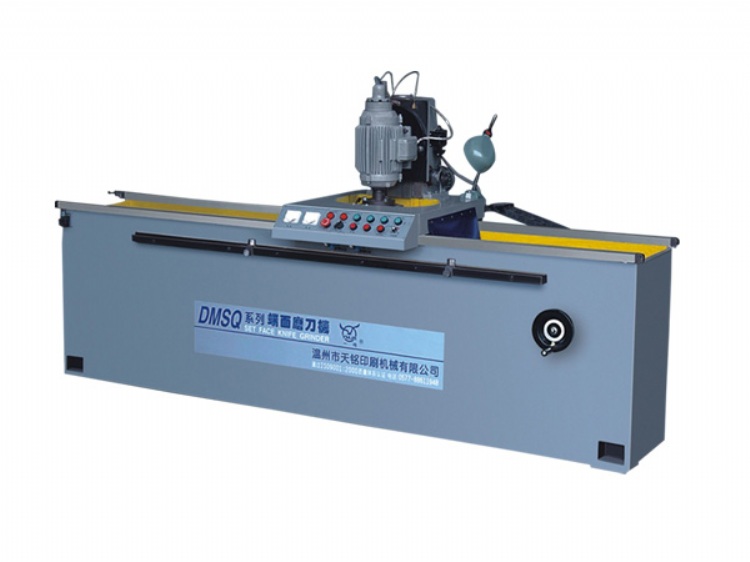

DMSQ-1600H(CE)Wood Grinder Woodworking Grinder
Model: DMSQ-1600H
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Other Printing Machines
Characteristics
Woodworking Machinery Grinder Model DMSQ-H
Woodworking Machinery Grinder Model DMSQ-H uses the high-quality carbon structural steel, processed from the gantry structure of the fuselage, a special water-cooled grinding motors, cooling even difficult to burn knife; grinding head with a rolling linear guide drive, and imported frequency converter to realize A high degree of automation; and using paste-type cylindrical grinding wheel, extend the wheel 1 / 3 of life, saving energy consumption.
Woodworking Machinery Grinder Model DMSQ-H can face the blade sharpening all kinds of lath (such as: joint line knife, toilet paper scraper, three-side trimmer, plastic shredders, paper cutting machine, wood chipper, shears, etc. used in the blades);It is a medium-sized printing Plants, the best choice for small sharpening room.
Woodworking Machinery Grinder Model DMSQ-H Main Function Deployment (excerpt)
Location rolling linear guide rail
Centralized refueling device
Imported electrical components (optional device)
Scraper jig (optional device)
Woodworking Machinery Grinder Model DMSQ-H Main technical parameters
Wheel Size-------------------------------------------------------------------Cylindrical X200ѣX150100 mm
Maximum grinding width--------------------------------------------------taken 22Xas final 300 mm
Effective height of the grinding wheel and table--------------------80 mm
Table rotation----------------------------------------------------------------090 X
Grinding rotation speed---------------------------------------------------1420 r/min
Grinding movement speed-5 V -----------------------------------------15 m/min (Adjustable Frequency)
Movement electromotor power------------------------------------------0.55 KW
Grinding head motor power----------------------------------------------3 KW
Pump motor power---------------------------------------------------------0.25 KW
Specifications
Woodworking Machinery Grinder Model DMSQ-H Main function/Technical parameters
Water-cooled motor grinding wheel head
Maximum grinding width:taken 22Xas final 300 mm
Frequency Control
Automatic feed grinding
Rack and pinion
Gantry body
Magnetic chuck tool holder table
Worm drive tool holder
Table rotation angle: 090X
Note: Woodworking Machinery Grinder Model DMSQ-H, there grinding the length of 1.7m, 2.2m, 2.4m, 2.6m, 2.8m, 3m, 3.2m, 3.5m, 4m, 4.5m, 5m, Total of 11 specifications.
------------------------------------------------------------------------------------------------------------
