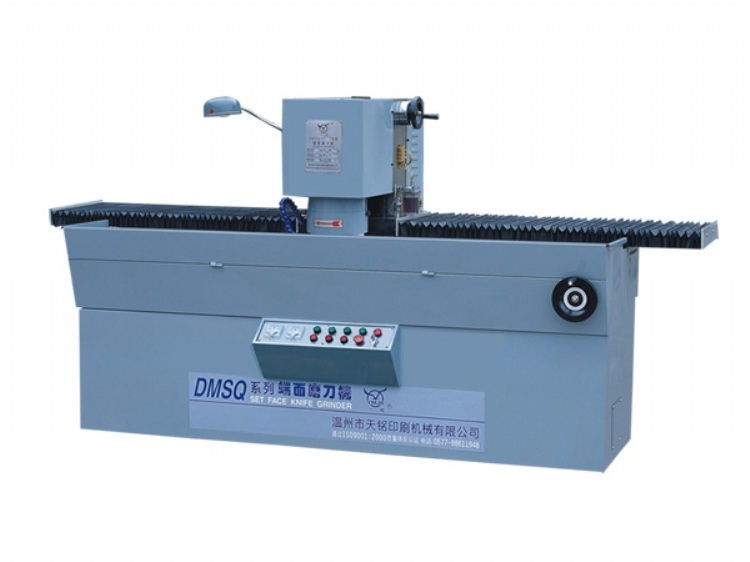

DMSQ-1700K(CE)CNC Grinder CNC Machine

Model: DMSQ-1700K

Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Printing Machines

Online Inquiry

Characteristics

CNC Grinder Model DMSQ-K

CNC Grinder Model DMSQ-K is a sharpener in the same grade in the highest degree of automation, CNC Grinding. A stepping motor, PLC control system programming; wheel auto-feed, can automatically adjust the coarse grinding, fine grinding times; to memory, storage, and dynamic tracking. Effectively saving production preparation time, reduce labor intensity.

CNC Grinder Model DMSQ-K is is the best choice center for small knife, small and medium sized printing and packaging industry customers.

CNC Grinder Model DMSQ-K Main Function Deployment (excerpt)

● Dovetail rails
● Centralized refueling device
● PLC programmable control system
● Dust device
● Imported electrical components (optional device)
● Scraper jig (optional device)

CNC Grinder Model DMSQ-K Main technical parameters

Wheel Size------------------------------------------------------------------Cup Φ200xΦ100x100 mm
Maximum grinding width-------------------------------------------------taken 22°as final 180 mm
Effective height of the grinding wheel and table-------------------80 mm
Table rotation---------------------------------------------------------------0∼±90 °
Grinding rotation speed--------------------------------------------------1400 r/min
Grinding movement speed----------------------------------------------6 m/min
Movement electromotor power-----------------------------------------0.55 KW
Grinding head motor power---------------------------------------------1.5 KW
Pump motor power--------------------------------------------------------0. 125 KW

Note: CNC Grinder Model DMSQ-K, there grinding the length of 1.73m, 2.2m, 2.4m, 2.6m, 2.8m, 3m, 3.2m, 3.5m, 4m, 4.5m, 5m, Total of 10 specifications.
