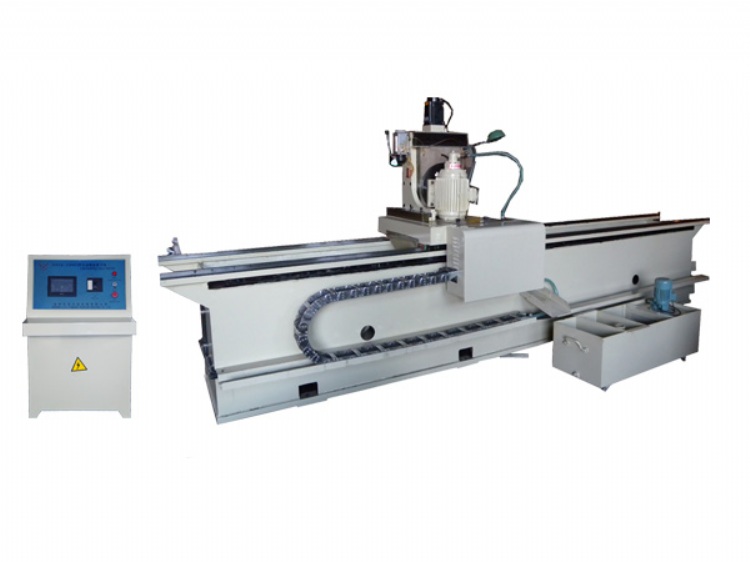

DMSQ-1700HC(CE)Heavy cutting Grinder Heavy cutting knife sharpener
Model: DMSQ-1700HC
Category: Machine Tools / Grinding Machines / Grinding & Finishing Machines
Characteristics
Heavy cutting Grinder Model DMSQ-HC
Heavy cutting Grinder Model DMSQ-HC, its body is the gantry-type body which adopts the carbon constructional quality steel; Its wheel head transmission is rolling positioning linear guide; Rails can be replaced, that the machine can last longer, travel more stable drive.
Heavy cutting Grinder Model DMSQ-HC, Automatic feed grinding wheel by the PLC program control system, automatic control, and memory, storage and dynamic tracking, simple operation, greatly reducing the time to prepare workpiece; it can automatically adjust the coarse grinding, grinding times, the Brothers more convenient, is Medium-sized printers.
Heavy cutting Grinder Model DMSQ-HC is the best choice for small and medium sharpening room.
Heavy cutting Grinder Model DMSQ-HC Main Function Deployment (excerpt)
Imported linear guide rail
Centralized refueling device
Imported electrical components (optional device)
Scraper jig (optional device)
Heavy cutting Grinder Model DMSQ-HC Main technical parameters
Wheel Size--------------------------Cylindrical X200ѣX150100]X300ѣX250100^mm
Maximum grinding width-----------------------------------------------taken 22Xas final 300 mm
Effective height of the grinding wheel and table-----------------80 mm
Table rotation-------------------------------------------------------------090 X
Grinding rotation speed--------------------------------------0-1800 r/min (Adjustable Frequency)
Grinding movement speed---------------------------------315 m/min (Adjustable Frequency)
Movement electromotor power---------------------------------------0.55 KW
Grinding head motor power-------------------------------------------4 KW
Pump motor power------------------------------------------------------0.25 KW
Specifications
Heavy cutting Grinder Model DMSQ-HC
Main function/Technical parameters
Water-cooled motor grinding wheel head
Grinding head can move back and forth
Maximum grinding width:taken 22Xas final 300 mm
Frequency Control (travel mobile)
Automatic feed grinding
Rack and pinion
Gantry body
Magnetic chuck tool holder table
Worm drive tool holder
Table rotation angle: 090X
---------------------------------------------------------------------------------------------------------
