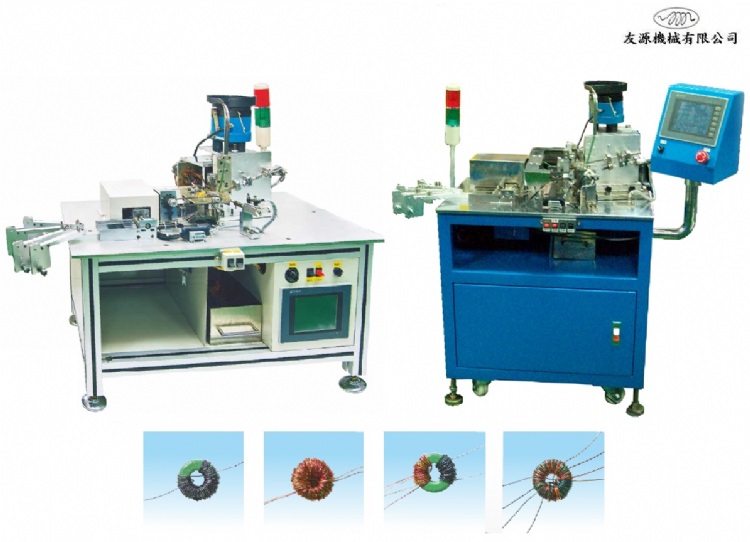

Fully automated toroid winding machine
Model: CTM-1032
Category: Automatic/Industrial Machines & Equipments / Special Machine Tools / Winding Machines, Automatic Winding Machines
Characteristics
Multiple winding way starts from 4-set enameled wire winding (single set winding and double set winding),single winding as well as parallel winding which all can be composed From setting up the torioids, winding to cutting as well as finished product are all automated.
It has the state of the art variable code program with digital logical, digital operation, automatic re-set. Efficient production brings the output of the finished product up to 10,000~20,000 as well as working for twenty-four hours.
Why we have high-quality
◆Winding would not do any damage to enameled wire which brings the withstand voltage of the right coil’s magnetic inductance.
◆The distribution of the toroid coil brings the low leakage inductance.
◆Stable quality of the coil production brings the consistency production.
◆The precision of the coil winding brings the right inductance value.
Specifications
1. Wire-feeding motor: Brushless DC Motor
2. Traverse motor: Stepping motor
3. Turning speed: 1,000r.p.m. (Max)
4. Torid coil outer diameter: 2.5∼10.0mm
5.Toroid coil diameter: Above 1.5mm
6. Power supply: Single phase AC220V±10%，50/60Hz
7.Machine weight: 80Kg
8.Machine dimension: 460(L)x850(W)x980(H)mm
9.Positioning accuracy: 0.33°
10.Power consumption: Less than 500w
11.Storage: 30 set of winding patterns(Max)
12.Options:
(1) Wire-storage plate
(2) Uploading function of toroid coil
(3) Vibrating plate of toroid Coil
(4) Nozzle
