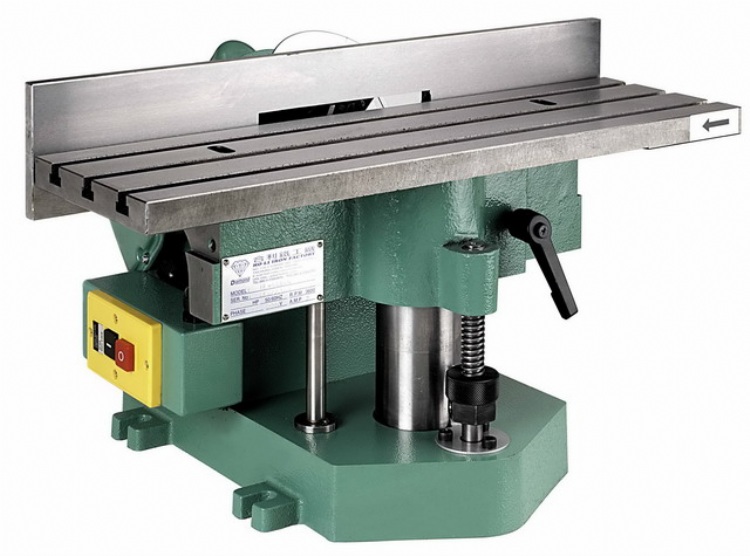

Omnipotent Face Mill Chamfering Machine
Model: JT-500AG
Category: Machine Tools / Others / Other Machinery
Characteristics
A. Adopt with the face mill cutting.
B. Available for all kind of materials.
C. Workpeice with angle 45 degree after chamfered.
D. The T-slot table can option with T jig (Type 1)
to avoid the surface crashed.Also, to move up and d
own for chamfering the T workpeice by track (Type2)
E. CE version is available.
Specifications
MODEL JT-500AG
Machine Size L500×W430×H300mm
Voltage:3φ,220V-440V; 1φ,110V/220V,50Hz/60Hz
Speed:3500r.p.m
Height of bevel:0-4mm
Bevel angle:45 degree
N.W./G.W.:48.5kgs/58kgs
Packing:50×60×40cm
Measurement:4.4 Square feet
Motor:1HP
Track Size:500×150×20mm,500×92×12mm
