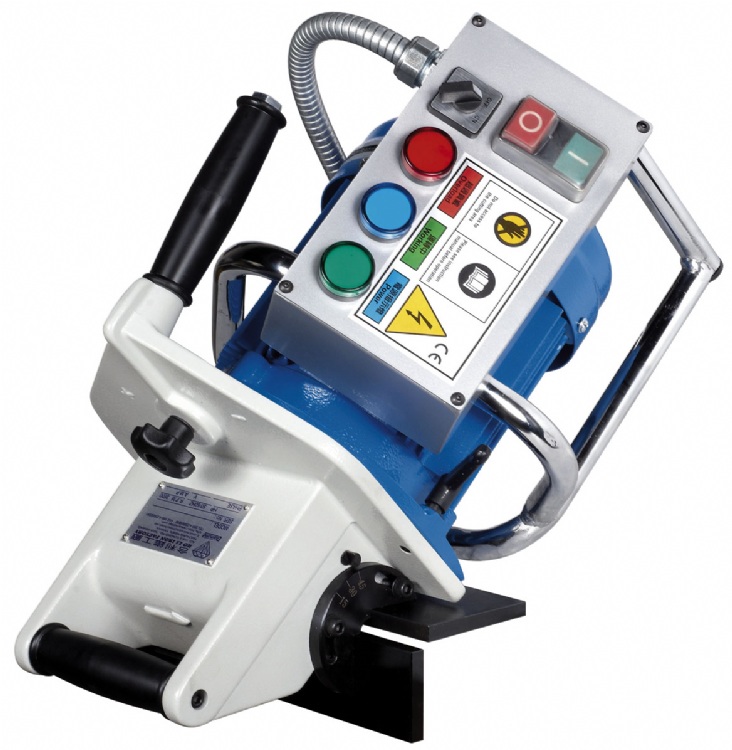

Portable Chamfering Machine
Model: JT-250GS
Category: Machine Tools / Others / Other Machinery
Characteristics
A. Adopt with side mill cutting. Quick exchange for knife insert
B. Any metal materials are available for chamfering
C. Swivel track for adjusting, the range from angle 15~45 degree.
Chamfered with side 15~45 degree for matching different requirement
D. The chamfering capacity is 0~14C, 0~20mm/45degree.
Specifications
MODEL:JT-250GS
Voltage:3φ,220V-440V; 50Hz/60Hz
Speed:3500r.p.m
Motor:2HP
Capacity:0~14C,0~20mm/45°
Bevel angle:15~45 degree
Track Size:250×75×9mm,250×50×9mm
N.W./G.W.:24kgs/27kgs
Packing:55×42×32cm
Measurement:2.61Square feet
