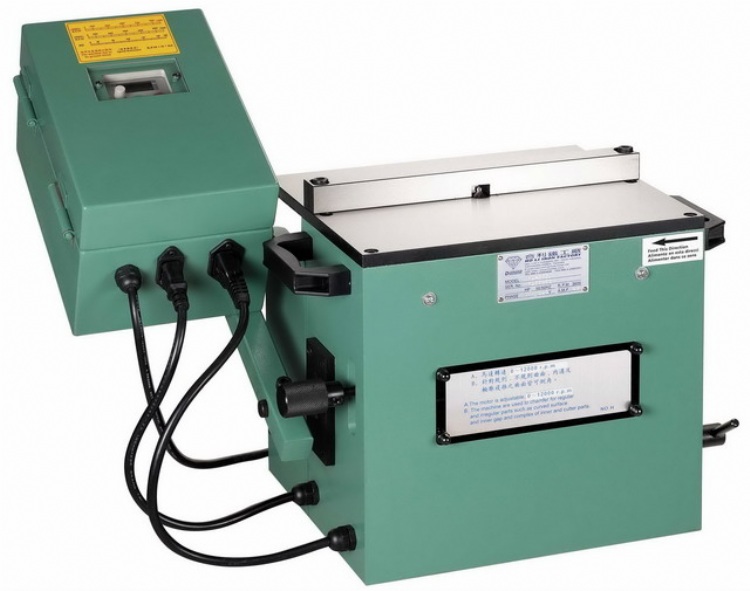

Inverter Chamfering Machine ( Regular+Irregular)
Model: JT-300A
Category: Machine Tools / Others / Other Machinery
Characteristics
A. Adopt with standard carbide end mill cutting.
B. Equipped with inverter motor, range of speed 0~12000r.p.m
Depending on different materials do different chamfering process.
(Except heat treatment)
C. Special for chamfering regular and irregular curving surface, such as inner gap,
Complex curve surface of inner or outer.
D. Available for chamfering workpeice with inner diameter and inner gap width with 8mm
Or radian with 4R or above.
E. Chamfer ability range: within 0~2C or 3R
F. Workpeice with angle 45 degree after chamfered.
Specifications
Model
\ MODEL JT-300A
Machine Size:L330×W330×H330mm
Voltage:1φ,220V-440V; 50Hz/60Hz
Speed:0~12000r.p.m
Height of bevel:0-3mm
Bevel angle:45 degree
N.W./G.W.:32kgs/36kgs
Packing:55×44×38cm
Measurement:3.4Square feet
Motor:1HP
Track Size:300×250×12mm
