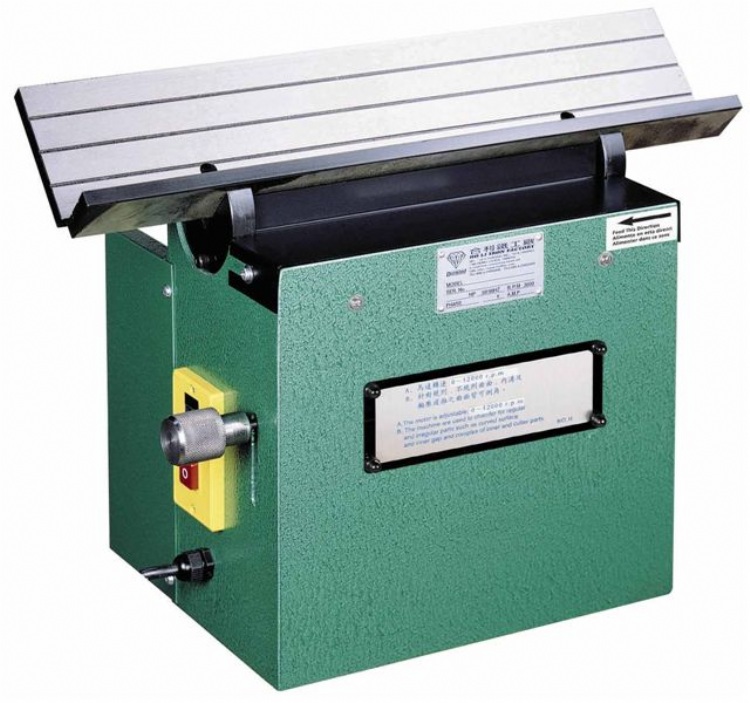

Multi-Function Chamfering Machine
Model: JT-500DF
Category: Machine Tools / Others / Other Machinery
Characteristics
A. Adopt with bowl type wheel and face mill cutting. Both are exchangeable.
The V type table is easy for chamfering and saving energy.
B. In the face mill cutting function. You can adjust the swivel angle to make the insert
cutter.To be valued using and saving the consumption costs of tools.
C. Available for chamfering any kind of materials.
D. Workpeice with angle 45 degree after chamfered.
E. Special design of dust removed.
Specifications
MODEL JT-500DF
Machine Size L500×W420×H350mm
Voltage:3φ,220V-440V; 1φ,110V/220V,50Hz/60Hz
Speed:3500r.p.m
Height of bevel:0-3mm
Bevel angle:45 degree
N.W./G.W.:32kgs/36kgs
Packing:55×42×32cm
Measurement:3.4Square feet
Motor:1HP
Track Size:500×100×12mm,500×40×12mm
