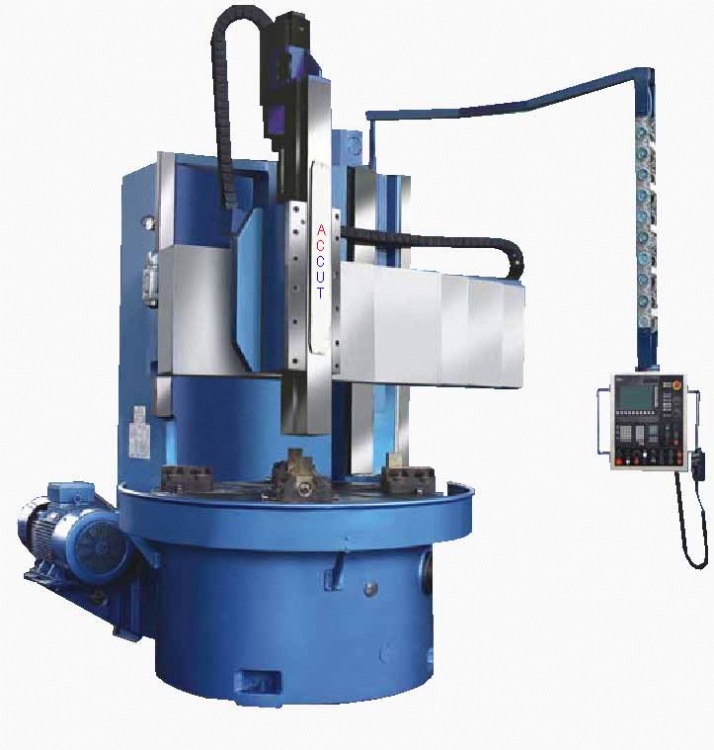

CNC single column vertical turret lathe
Model: CK51 series
Category: Machine Tools / Lathes / CNC Lathes, Vertical Type
Characteristics
Modularization design and the general products are mature, stable and reliable.
Excellent casting (HT300) is treated by heat ageing.
The beam guide is handled by supersonic frequency induction hardening and it adopts rolling-sliding compound type. The vertical tool holder utilizes ductile iron materials while the sliding surface uses sticking plastic treatment with a durable performance.
Manual lubrication pump realizes oiling lubrication of different lubricating parts.
High-quality famous and exceptional electric components and Japan Omron PLC control guarantee high reliability.
Specifications
| Technical date | Unit | CK5112 | CK5116 | CK5120 | CK5123 | CK5126 | |
| Max. cutting diameter | mm | 1250 | 1600 | 2000 | 2300 | 2600 | |
| Diameter of worktable | mm | 1000 | 1400 | 1800 | 2000 | 2250 | |
| Max.height of workpiece | mm | 1000/1200 | 1200/1400 | 1400 | 1400/1650 | 1600/2000 | |
| Max. capacity of workpiece | ton | 4 | 6 | 8 | 8/10 | 10/12 | |
| Worktable speed range | r/min | 2-250 | 2-200 | 2-120 | 2-120 | 2-80 | |
| Horizontal travel of tool head | mm | 850 | 1020 | 1115 | 1400 | 1500 | |
| Max. travel of the ram | mm | 650 | 800 | 1000 | 800/1000 | 1000/1300 | |
| Cross rail travle | mm | 650 | 850/1000 | 890/1240 | 1050/1300 | 1240/1640 | |
| Max. output torque of worktable | KN.m | 20 | 32 | 32 | 32 | 32 | |
| Max. cutting force of tool head | KN | 30 | 30 | 40 | 40 | 50 | |
| Tool post | Manual tool holder / manual pentagonal /electricial 4 positions | ||||||
| Section of tool shank(L X W) | mm | 32X32/40x40 | 40x40 | 40x40 | 40x40 | 40x40 | |
| Power of main motor | kw | 22/30 | 30 | 37 | 45 | 45 | |
| Machine size | meter | 2.36x2.28x3.4 | 2.66x2.66x3.7 | 3.28x3.2x3.9 | 3.31x3.25x4.01 | 3.68x3.36x5.1 | |
| Machine weight | ton | 9 | 13/14.5 | 16 | 19/21 | 28/30 | |
| CNC system | Siemens 802D sl / Fanuc 0i-mate or 0i | ||||||
