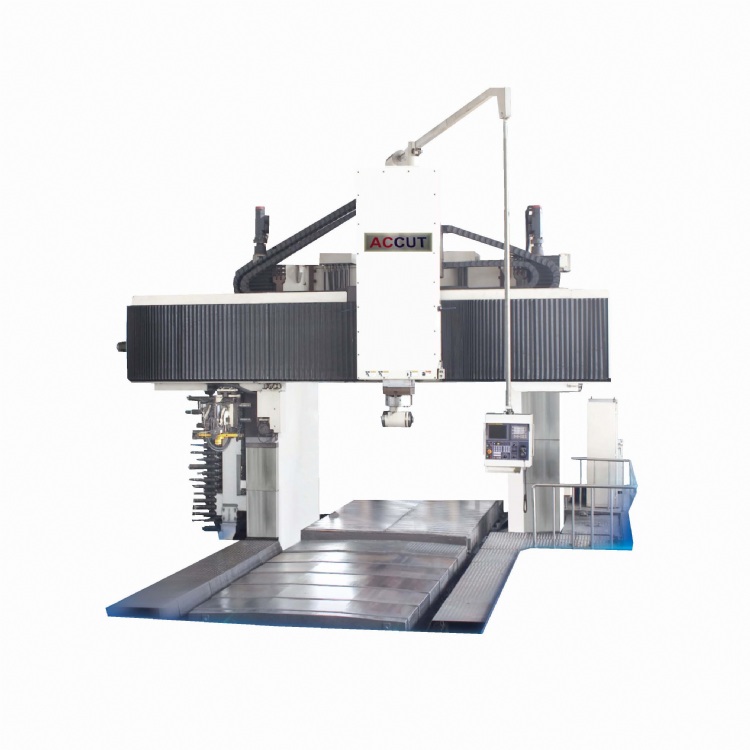

Gantry machining center - Movable column & Beam
Model: MBC series
Category: Machine Tools / Machining Centers / CNC 5-Axis Machining Centers
Characteristics
MBC series CNC gantry milling machines possesses of high efficiency, high accuracy and high reliability.
The machine is widely applied in the field of machinery manufacture for rough and finish machining of big and middle base parts, box body, planisher and etc. It can carry out machining of flat surface, holes, inclined faces, inclined holes, curve faces and small faced plane of body components. The machine possesses milling, boring, drilling, reaming and tapping functions.
CNC system can realize milling with 3 axes simultaneous control.
Specifications
| Technical date | Unit | MBC32 | MBC42 | MBC52 | MBC62 |
| Table size | mm | 2500x6000-12000 | 3500x6000-12000 | 4500x8000-15000 | 5500x8000-15000 |
| Range of spindle speed | r/min | 2-1600 / 2-2500 | |||
| Ram size | mm | 400x400 | |||
| Width between columns | mm | 3200 | 4200 | 5200 | 6200 |
| X axis travel | mm | 6000-12000 | 6000-12000 | 8000-15000 | 8000-15000 |
| Y axis travel | mm | 3200 | 4200 | 5200 | 6200 |
| Z axis travel | mm | 1600/2100/2600 | 1600/2100/2600 | 1600/2100/2600 | 1600/2100/2600 |
| Rapid travel speed X/Y/Z | m/min | 12/12/10 | 12/12/10 | 12/12/10 | 12/12/10 |
| CNC system | Siemens802D sl / 840 sl / Fanuc 0i / FAGOR | ||||
