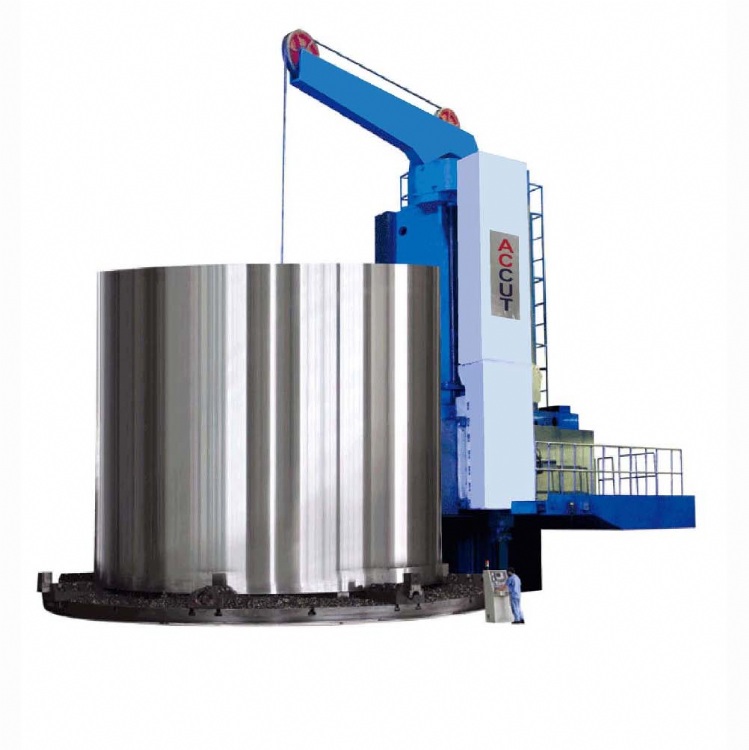

Single column movable vertical turning lathe
Model: CK53 series
Category: Machine Tools / Lathes / CNC Lathes, Vertical Type
Characteristics
CK53 series single column movable vertical turning lathes are the super heavy duty equipments which are widely used for machining large components with strong ponts of heavy loading capacity, high accuracy, convenient operation.
Specifications
| Technical date | Unit | CK5380 | CK53100 | CK53130 | CK53150 | CK53160 |
| Max. cutting diameter | mm | 8000 | 10000 | 13000 | 15000 | 16000 |
| Diameter of worktable | mm | 4000 | 4700/5000 | 5700/6300 | 7200 | 8000 |
| Max. capacity of workpiece | ton | 50 | 70 | 100/160 | 250 | 400 |
| Max.height of workpiece | mm | 3000/4000 | 3000/4000 | 4000/5000 | 4500/5500/6300 | 6300 |
| Worktable speed range | r/min | 0.32-32 | 0.32-32 | 0.25-25 | 0.15-15 | 0.15-15 |
| Max. output torque of worktable | KN.m | 125 | 125 | 250/400 | 530 | 630 |
| Horizontal travel of tool head | mm | 2250 | 2500 | 3000 | 3500 | 3500 |
| Max. travel of the ram | mm | 1800/2000 | 2000 | 2000/2500 | 2500/3150 | 3150 |
| Max. travel of column | mm | 3000 | 4000 | 5000 | 5500 | 6000 |
| Main motor power | kw | 75 | 90 | 110 | 130 | 130 |
| Column moving motor power | kw | 7.5 | 7.5 | 11 | 11 | 11 |
| CNC system | Siemens802D sl / 840 sl / Fanuc 0i | |||||
