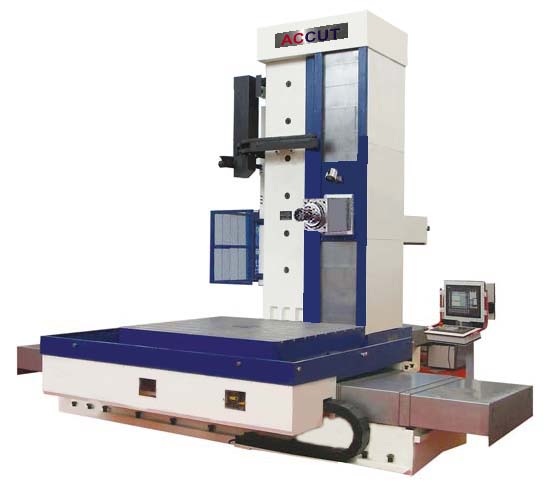

Horizontal boring mill - planer type
Model: TK65 series
Category: Machine Tools / Boring Machines / CNC Boring Machines
Characteristics
TK65 series consists of main machine and rotary table which can be placed and used independently. The overall arrangement is "T" in shape, the direction of table movement is vertical to spindle and column movement. The travel of table and column and the height of column both can be redesigned. It is suitable for machining small and middle sized workpiece by boring, milling, reaming and drilling, such as: bores and surfaces of various frame, supports and reducing of box and etc.
Specifications
| Technical date | Unit | TK6513 | TK6516 |
| Boring spindle diameter | mm | 130 | 160 |
| Spindle taper | ISO50 | ISO50 | |
| Range of Spindle speed | r/min | 1-2000 | 2-1500 |
| Power of main motor | Kw | 37 | 37 |
| Worktable load | ton | 10/20/30/50/80 | 10/20/30/50/80 |
| Ram size (LxW) | mm | 380x420 | 480x520 |
| Max.Spindle Thrust | N | 25000 | 30000 |
| Number of Spindle speed steps | stepless | stepless | |
| Worktable size (L x W) | mm | 1400x1600 /2000x2500 | 2000x2500 /2500x3000 |
| X axis travel--worktable | mm | 2500-10000 | 2500-10000 |
| Y axis travel--spindle box | mm | 2000/3000 | 2000/3000/4500 |
| Z axis travel--spindle bar | mm | 800 | 800 |
| W axis travel--ram | mm | 800 | 800 |
| V axis travel--column | mm | 1600 | 1600 |
| B axis worktable rotary | 360° | 360° | |
| Machine weight | kg | 42000 | 53000 |
| CNC system | Siemens802D sl / 840 sl / Fanuc 0i / FAGOR | ||
