Material testing machine
Model: QC-506M1
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics

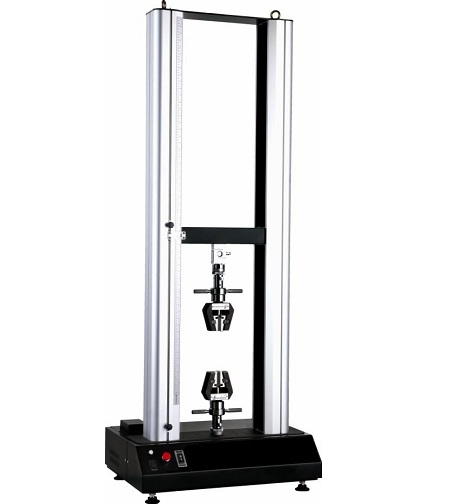

Product Serial : QC-506M1 Computerized Tensile (Compression) Testing Machine
Confirm to ISO 7500-1, ASTM E4, ASTM D-76, DIN5122, JIS B7721/B7733, EN 1002-2, BS1610, GB T228 Standard
It is design two column, it has better stable, rigidity and displacement of precision when machine is moving. The machine can be required to add long stroke which elongation can be higher 800% of material and finish test successfully.
It also can add high and low temperature chamber which can do test specimen in different temperature environment. This machine is using special testing software which can do tensile test, compression test, bending test and peeling test. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis.
Industry: Rubber, Plastic, Paper, Textile, metal, wood, tape, electron, package, Medical, Architecture
-----------------------------------------------------------------------------------------------------------------------
Material testing machine are available to measure many physical properties including compression, tensile strength,adhesion, abrasion, friction, impact, internal bond, softness and thickness. The tensile tester has the strong structure and big operation space. The material test equipment can mount with different function of the controller for different industries according to user’s request. Testing systems can install other accessories like sensor, extensometer, grips and software depending on the various different specimens. Undoubtedly this testing instrument still keeps the advantage for testing precision, simply operation and convenient to upgrade. We have a series of M1 type QC-503M1/505M1/508M1/513M1 tensile/compression testing tester. Cometech manufactures material tensile testing machine for tension,compression,hardness and bending test in Taiwan. Users can choose the suitable compression testing tester base on their special testing requirements. Click view more pictures for more other related testing machines.
Specifications
| Model | QC-506M1-204 | QC-506M1-2A4 | ||
|---|---|---|---|---|
| Max. Capacity | 20 KN | |||
| Force Resolution | 1/10,000 | |||
| Stroke | Test stroke 800 mm (without grip) | Test stroke 1200 mm (without grip) | ||
| Stroke resolution | 0.0001 mm | |||
| Space between columns | 425 mm (550mm、680mm、800mm, optional) | |||
| Speed range | 0.03 ~ 800 mm/min adjustable（Set up by computerized） | |||
| Speed precision | 0.03 ~ 10 mm/min ± 2% 10 ~ 800 mm/min ± 1% |
|||
| PC-Port | TCP/IP | |||
| Data sampling rate | Faster 100HZ | |||
| Hardware safety protection | Up/down limit, emergency stop button | |||
| Motor type | Servo Motor | |||
| Feature |
※Unique accessories with auto identification system, it does not have other complicated setting when use it. ※Use inching with precision hand wheel to control machine up and down which can speed up adjust machine of position. ※Standard model have keep multi-input signal and fixation. It can provide user to add more function in the future. |
|||
| Power Supply | Single phase 200 ~ 240VAC，5A | |||
| Dimension | 84 × 58 × 151 cm | 84 x 58 x 190 cm | ||
| Weight | 145 kg | 170 kg | ||
