Tensile (Compression) Testing Machine
Model: Tensile (Compression) Testing Machine
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics

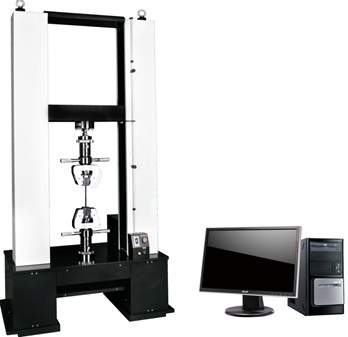

QC-50AM1 / QC-500M1 Computerized Tensile (Compression) Testing Machine
Confirm to ISO 7500-1, JJG475-88, ASTM E4, DIN5122, JIS B7721/B7733, EN 10002-1, EN 1002-2, BS1610, GB228 Standard
This series models are over 500KN capacity which can do tensile, compression bending of material. It can satisfy various tests, high rigid frame structure and precise servo motor transmission. It has two testing space (upper and lower). It is suitable on metal, composite materials, architechture of high-tech industries of test material.
This serial modelis using special testing software which is use Windows 7/8 of Person computer. It can do tensile test, compression test, bending test, bending test and all kind of test. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis.
Industry: Rubber, Textile, Metal, Architecture
Specifications
| Model | 50AM1 | 500M1 |
|---|---|---|
| Max. capacity | 600 kN | 500 kN |
| Force Resolution | 1/10,000 | |
| Test Stroke(w/o grip) | 1600 mm | |
| Stroke resolution | 0.00005 mm | |
| Space between columns | 550 mm | |
| Speed range | 0.02 ~ 300 mm/min | |
| Speed precision | 0.02 ~ 3 mm/min ± 2% 3 ~ 300 mm/min ±1% |
|
| PC-Port | TCP/IP | |
| Datasample rate | Faster 100 Hz | |
| Hardware safety protection |
Up/down limit, emergency stop button | |
| Motor type | Servo motor | |
| Transmission | Precise reducer, ball screw. It can reduce noise and transmission loses and increase transmission efficiency. | |
| Feature | ※The seal plate mining anode hardening which protect ball screw and increase service life and precision. ※Unique accessories with auto identification system, it does not have other complicated setting when use it. ※Use inching with precision hand wheel to control machine up and down which can speed up adjust machine of position. ※Standard model have keep multi-input signal and fixation. It can provide user to add more function in the future. ※With external I/O signal contact which can expanded with other function. | |
| Power Supply | 3 phase200~240VAC，70 A | |
| Dimension | 145 × 85 × 295 cm | |
| Weight | 2350 kg | |
