Vicat Heat Deflection Tester

Enlarge

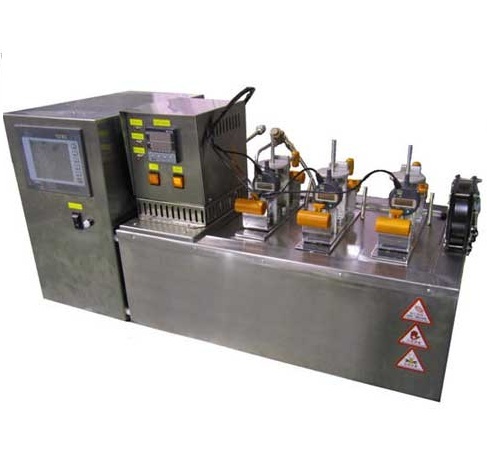

Vicat Heat Deflection Tester

Model: Vicat Heat Deflection Tester

Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts

Online Inquiry

Characteristics

QC-655 Vicat Heat Deflection Tester

Confirm to ASTM D1525 ISO 306 GB T1633 Standard

Vicat softening of temperature (VST) is the specimen was measured by the fixed load 1kg (or 5kg). When the cross-sectional 1mm2 of standard needle punctures into surface 1mm deep of temperature, the testing specimen of ambient temperature should be 50 degrees per hour in rise speed steady. The specimen requires 3mm ~6.5mm (thickness) and size will be 10x10mm or dia. 10mm at least.

Industry : Plastic、Rubber

Specifications

Model No.	QC-655
Temperature	Room temperature ~ 300℃
Control Temperature	50℃/per hour
Weight	Method A：1Kg、Method B：5Kg
Deformation display	0.01 ~ 10 mm
Specimen size	At least two specimens prepared and at least have 3 to 6.5mm thickness and size 10mm2., the two sides of specimen should parallel, surface is smooth without crack or air bubble. If thickness is over 6mm, should cut one side surface to around 3mm (thickness) , the other side remain the same. If the thickness is below 2.5mm, fold 3 pieces (max) together to make the thickness at least 3mm.
Testing Sets	Mechanical meter 0.01~12mm Digital meter 0.001~12mm PLC control 0.001~12mm Set choice: 1、2、3、6 sets
