Melt Flow Index
Model: Melt Flow Index
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics

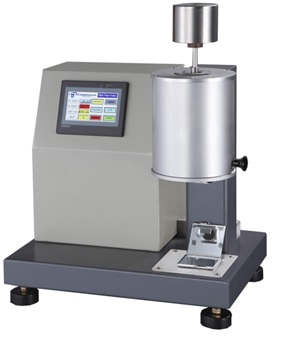

Product Serial : QC-652A Melt Flow Index
Confirm to ASTMD1238 D3364, ISO 1133, GB- T3682 Standard
Molten mass flow rate is thermoplastic which under certain temperature and load. Melting object each 10 minutes through standard hole mold mass is MFR and each 10 minutes through standard hold mold volume is MVR. The value indicates thermoplastic viscous flow characteristic under melt condition. QC-652A is designed for MFR test.
Industry : Plastic
Specifications
| Use temperature | 50~360℃ | |
|---|---|---|
| Test Temperature, T | Maximum allowable deviation from required test temperature | |
| At (10±1) mm above the top surface of the standard die | From (10±1) mm to (70±1) mm above the top surface of the standard die | |
| 125 ≦ T ＜250 | ±1℃ | ±2℃ |
| 250 ≦ T ＜300 | ±1℃ | ±2.5℃ |
| 300 ≦ T | ±1℃ | ±3℃ |
| Counter accuracy | ±0.01s | |
| Piston push rod weight | 100g | |
| Heater size | 9.55±0.01 | |
| Hole mold | 2.01±0.01 | |
| Counter weight | 1100g、2060g、3700g、4900g for each | |
| Accessories | Cleaning brush、mirror、measuring cups、funnel | |
| Weight | 30kg | |
| Dimension | 60x30x43cm | |
