Digital Metal Impact Tester
Model: Digital Metal Impact Tester
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics

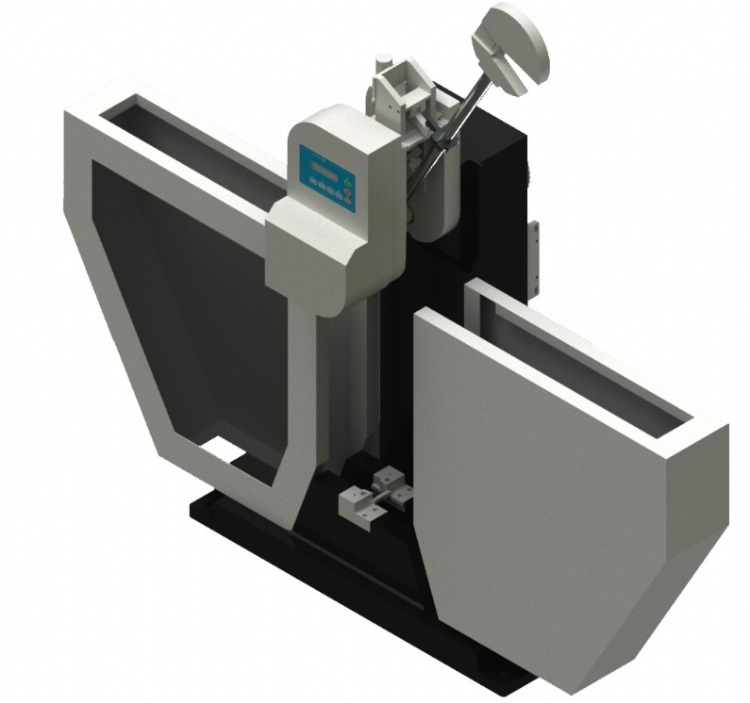

QC-9130(A) Digital Metal Impact Tester
Confirm to EN 10045, ASTM E 23-00a, GB T229 Standard
It is suitable for metal material of large capacity impact tester. It used hammer once of swing impact specimen which broken was based on hammer of initial angle and after strike of angle to get hammer of loss energy which is material of impact energy value. This tester of feature is high precision, easy operation and the hammer will be auto return after finish impact. The test result can get from digital display and no need to complicate to calculation
Industry : Metal
Specifications
| Model | QC-9130 | QC-913A | |
|---|---|---|---|
| Capacity | 100J、150J | 300J | |
| Type | CHARPY TYPE | ||
| Speed | Impact speed：5 m/sec ± 10％ | ||
| Best testing range | The hammer capacity within10 ~ 90% | ||
| Machine displays of angle |
0.05 ° | ||
| Impact angle | 150° | ||
| Energy unit | J、J/mm、J/cm、J/mm²、J/cm²、KJ/m²、Kg-cm、Kg-cm/mm、Kg-cm/cm、ft-lb、ft-lb/in、ft-lb/in² | ||
| Power | Single phase 220 V | ||
| Dimension | 188 × 65 × 178 cm | 210 × 95 × 208 cm | |
| Weight | 710 kg | 900kg | |
