Surface Hardness Abrasion Tester
Model: Surface Hardness Abrasion Tester
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics

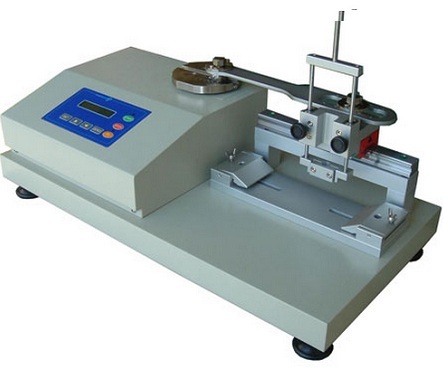

QC-621H Surface Hardness Abrasion Tester
This tester of main purpose is for measure surface treatment such as painting, plating, coating, dyeing and finishing the design of the machine. It can use cotton, sand paper, steel wool and eraser to test specimen of wear condition. This tester can cater various different standard of requirement to set condition for testing such speed, stroke, specimen appearance, abrasion head and load.
Industry: Plastic, Electronic, Textile, Print
Specifications
| Model | QC-621H |
|---|---|
| Weight set | 50g x1、100g x1、200g x1、300g x1、500g x1、1000g x1 |
| （basic weight is 200 g） | |
| Abrasion distance | 10 ~ 100 mmadjustable (Adjustment by hand) |
| Max test load | Test stroke is under 50 mm, the max. load is 8kg. |
| Abrasion head | a.Φ6.35 mm sand paper abrasion head |
| b.Φ16 mm cotton abrasion head | |
| c.Φ16 mm steel wool abrasion head (optional) | |
| d. Optional accessories | |
| Sample Size | Width 20 ~ 200 mm，thickness max. 50 mm |
| Control Panel | 1 ~ 120 CPM Can be precisely set speed |
| 1 ~ 99,999,999 times can be set. Auto-stop after the test is completed. | |
| Power | 100V ~ 240V，50/60 Hz |
| Dimension | 70 × 35 × 40 cm |
| Weight | 46 kg |
