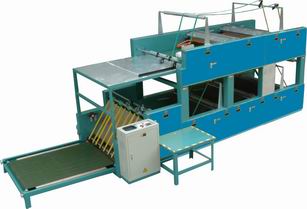

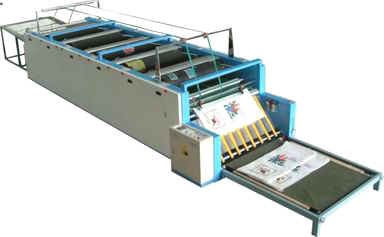

AUTOMATIC PP.PE BAG TWO SURFACE COLOR PRINTING MACHINE
Model: LE-3+2
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PP/PE Woven Bag Circular Looms
Characteristics
PP/PE woven bag flexographic printing press Special Features:
¡°Can be individually operated(manual feeding type) or connect with most
brand's conversion line and become a integrated line that combines cutting,
sewing & printing features into a fully automatic processing unit.
¡°Single sided or double sided, 1 to 6 colors combination available per request.
¡°Special separation device between color-plate cylinder and conveying belt to
avoid stain during empty load.
¡°No need to change roller(s) for different size's imprint and/or bag measurements
within rated range.
Main Feature:
¡P High Output UpTo 50 Bag/Min.
¡P Equipped ink Circulation Pump ln Each ColorFor Manage Proper ink Consistency.
¡P Special Desinrn For Change The Printing Plate Quickly And Easily.
¡P Easy Operation.
¡P Patented Separation Device Between Printing Cylinder And Conveyor Belt To Avoid Stain Conveyor During Empty Load.
Specifications
MODEL LE-4+4 LE-6+2
CHARACTERISTIC TWO SURFACE COLOR PRINTING TWO SURFACE COLOR PRINTING
APPLICABLE PLASTIC CLOTH PP/PE WOVEN BAGS PP/PE WOVEN BAGS
PRODUCTION CAPACITY 0 ~ 40(BAG/MIN) 0 ~ 40(BAG/MIN)
CAPACITY OP BAG 130CM X 85CM 130CM X 85CM
AREA OF PRINTING 105CM X 80CM 105CM X 80CM
PRINTING RUBBER PLATE , ZINE PLATE (7MM) RUBBER PLATE , ZINE PLATE (7MM)
MAN POWER 1~2 PERSONS 1~2 PERSONS
MAIN DRIVING MOTOR 3HP 3HP
POWER COMSUMPTION 4.2KW 5.0KW
PRINTING INK FLEXO INK FLEXO INK
MACHINE DIMENSION L9807 x W1650 x H1980MM (N.W4400KGS) L14807 x W1650 x H1980MM (N.W5200KGS)
