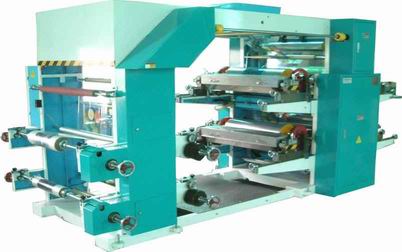

AUTOMATIC SERIES FLEXIBLE LETTER PRESS COLOR PRINTING
Model: LE-4800A
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PP/PE Woven Bag Circular Looms
Characteristics
performance and characteristics:
360º continuous and adjustable longitudinal register device.
Easy operation flexible starting accurate color register.
The meter counter can set printing quantity according to the requirements stop the machine automatically at the set quantity or when the material is cut off.
Lift and lower the printing plate cylinder manually it will automatically stir the printing ink after lifting.
Reliable drying system coordinated with high-speed rotation it will automatically break circuit when the machine stops.
Current output type temperature control system makes heating quicker and electricity saving.
The printing ink is spread by the knurled cylinder with even ink color.
Obverse and reverse side once-through continuous printing.
The imported frequency control of motor speed adapts to different printing speeds.
There are lnching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Specifications
MODEL
LE-4600A
LE-4800A
LE-41000A
CHARACTERISTIC
AUTOMATIC SERIES FLEXIBLE LETTER PRESS COLOR PRINTING
APPLICABLE PLASTIC CLOTH
PP/PE WOVEN BAGS,HDPE ,LDPE ,PE ,OPP,PET,PVC,PAPER
PRODUCTION CAPACITY
60~100M/Minute
60~100M/Minute
60~100M/Minute
MAX.DIAMETER OF ROLLING AND RELEASING
450MM
NO.OF COLOR
4 COLORS
4 COLORS 4 COLORS
PRINTING WIDTH
600 MM
800 MM 1000 MM
PRINTING LENGTH
191-914 MM
191-914 MM 191-914 MM
PRINTING
RUBBER PLATE , ZINE PLATE (2.54MM)
TOTAL POWER OF MACHINE
10.9KW
12.8KW
14.7KW
PRINTING INK
INK
MACHINE DIMENSION
L4200 x W1600 x H2400MM
L4200 x W1800 x H2400MM L4200 x W2000 x H2400MM
WEIGHT OF MACHINE
(N.W 3000KGS)
(N.W 3500KGS)
(N.W 4000KGS)
