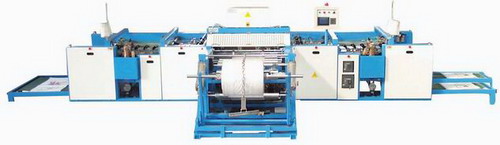

FULLY AUTOMATIC PP WOVEN BAG CONVERSION LINE
Model: LE-2006
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PP/PE Woven Bag Circular Looms
Characteristics
Product Description:
● Auto Changing Control By Production Setting
● 90° Transfer Rotary Movement Claw Type With Servo Motor Control X2
● Huma/Machine Operation Interface
● Equipped 3 Servo Motor
● High Production Speed (40~56 Bag/Min)
● High Quality Accessory And Part
Specifications
MODEL
LE-2006
CHARACTERISTIC
AUTOMATIC CUTTING&SEWING 2 SEWING
SERVO MOTOR
3.0kw x1PCS JAPAN
90 Degrees Transfer Driven Motor 2 HP Servo Motor X2PCS JAPAN
CONTINUOUS CUTTING
HEAT SUCCESSIVE CUTTING
Sewing Machine Driven Motor
1 HP AC Motor With Inverter Control
Cutting Knife Driven Motor 1 HP AC Motor With Inverter Control
Cutting Knife Unit Flat Type High Quality Alloy Steel Cutter
Sewing Unit New Long DN-2HSX1 New Long DN-2LX1
Sewing Thread Broken Alarm Enclosed
EPC Edge Position Controller Enclosed
APPLICABLE PLASTIC CLOTH
PP/PE WOVEN BAGS
PRODUCTION CAPACITY
40~56pcs(BAG/MIN)
CUTTING LENGTH
550~1250 MM
CUTTING WIDTH
400~850 MM
CUTTING ACCURACY
+.- 1MM
DELIVERY UNIT Bag Delivery (Every 25~ 50 bags)
COUNTING STACK TYPE BELT CONVEYOR
BAG MOUTH ANTI-STUCK DEVICE
EQUIPPED
STITCHING RANGE
6~12 (P/MM)
DIAMETER OF UNWINDING CLOTH
1200 MM
SIDE FOLDING WIDTH
15~25MM
MAN POWER
1 PERSONS
POWER REQUIRED
14.8KW
AIR COMPRESSOR
3HP X 1UNIT
MACHINE DIMENSION
L9100 x W3880 x H1360MM ( N.W3200KGS)
CUBAGE ARK
1X20"
