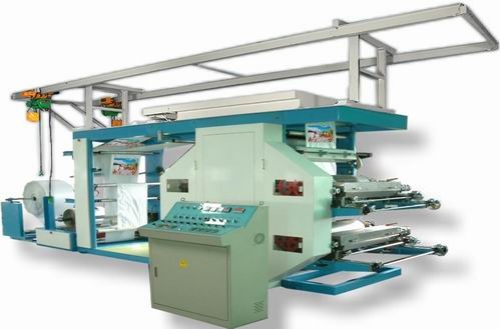

PP.PE WOVEN BAG 10 COLORS REEL TO REEL PRINTING LINE
Model: LE-10800PR
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PP/PE Woven Bag Circular Looms
Characteristics
360º continuous and adjustable longitudinal register device.
Easy operation flexible starting accurate color register.
The meter counter can set printing quantity according to the requirements stop the machine automatically at the set quantity or when the material is cut off.
Lift and lower the printing plate cylinder manually it will automatically stir the printing ink after lifting.
Reliable drying system coordinated with high-speed rotation it will automatically break circuit when the machine stops.
Current output type temperature control system makes heating quicker and electricity saving.
The printing ink is spread by the knurled cylinder with even ink color.
Obverse and reverse side once-through continuous printing.
The imported frequency control of motor speed adapts to different printing speeds.
There are lnching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Specifications
«¬¸¹
MODEL
LE-10800PR
¯S©Ê
CHARACTERISTIC
AUTOMATIC FLEXOGRAPHIC COLOR PRINTING
¾A¥Î§÷½è
APPLICABLE PLASTIC CLOTH
PP/PE WOVEN BAGS
²£¶q
PRODUCTION CAPACITY
60~90M/Minute
¦L¨ê²Õ¦X
PRINTING POSSIBILITY
0+10 , 1+9 , 2+8 , 3+7 , 4+6 , 5+5
¦L¨êÃC¦â
NO.OF COLOR
10 COLORS
¦L¨ê¼e«×
PRINTING WIDTH
300MM~900 MM
¦L¨êªø«×
PRINTING LENGTH
600-1250 MM
¦L¨êª©
PRINTING
RUBBER PLATE , ZINE PLATE (7MM)
¥Dn°¨¤O
POWER
8HP
¯Ó¹q¶q
POWER COMSUMPTION
18.8KW
ªo¾¥
PRINTING INK
¤ô©Ê
¾÷±ñ¤Ø¤o
MACHINE DIMENSION
L11200 x W1900 x H3400MM (N.W 6800KGS)
